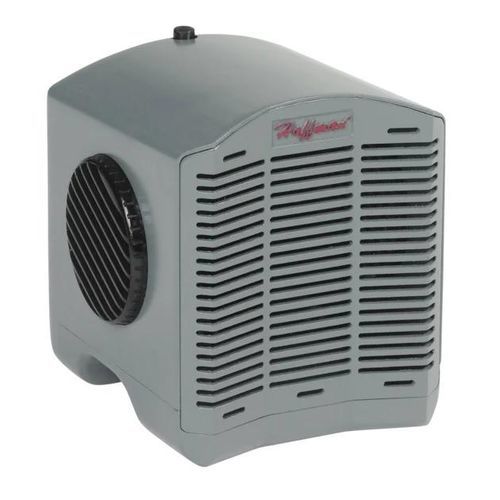

Refrigerant dehumidifier H2OMITTER

airfor electrical cabinetbuilt-in

Overview
The H2Omit Thermoelectric Dehumidifier removes moisture from the air within an enclosure, providing an economical and effective solution to protect electronic and electrical components from condensation.

Features

• Reduces corrosion that can shorten the life of internal electrical and electronic components
• Condenses moisture from enclosure air and from standing liquids
• Built-in drain provision with plastic hose directs collected moisture to the Vent Drain (sold separately)
• Rotating side air vents direct recirculating air away from critical controls
• Mounts on DIN rail or directly to the inside bottom of the enclosure above the Vent Drain (sold separately)
• Suitable for mild steel, aluminum, stainless steel and non-metallic enclosures
• High-impact ABS enclosure
• Operates on 24 V DC power
• 4.5 A max (84 W)
• Continuous operation above 32 °F (0 °C); can be controlled via hygrostat
• Removes approximately 8 oz (≈235 g) of moisture per 24 hours
• Compact 6.00 x 5.50 x 5.75 in (152 x 140 x 146 mm) design

Included

• One thermoelectric dehumidifier
• Four feet (1219 mm) of plastic hose
• Two hose retainers
• One double-ended hose retainer
• Six inches (152 mm) of Velcro®
• Seven-inch (178 mm) strip of DIN rail
• Two mounting screws

Industry Standards

• UL 508A Listed; File No. E61997
• cUL Listed per C22.2 No. 14; File No. E61997
• CE

Catalog / Identifiers

• Catalog#: H2OMITTER
• Article Number: 17762
• UPC: 783510177621
• EAN: 8713574237384

Technical Specifications

• Width: 5.50 in (140 mm)
• Depth: 5.75 in (146 mm)
• Height: 6.00 in (152 mm)
• Material: ABS
• Finish: Smooth matte
• Color: Gray
• Weight: 2.9 lb (≈1.3 kg)
• Power: 24 V DC (power supply not included)
• Current: 4.5 A max (84 W)
• Moisture removal rate: ≈8 oz (≈235 g) per 24 hours
• Operating: Continuous operation above 32 °F (0 °C); compatible with hygrostat control
• Mounting: DIN rail on internal panel or direct mount to inside bottom of enclosure above Vent Drain
• Standard Packaging Quantity: 1
• Packing Quantity: 1
