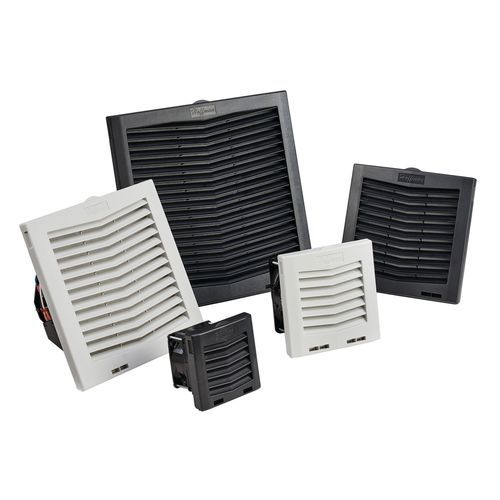

Axial fan HF series

wall-mountedfor air circulationventilation

Product Overview
HF Side-Mount Filter Fans install into enclosure side walls with a click-fit design that requires no tools or screws. The hinged grille remains attached when opened, allowing fast filter replacement by hand. Terminal block connections simplify electrical hook-up. An optional thermostat is available to reduce energy use and extend fan service life.

Features

• Click-Fit design for tool-free installation into enclosure walls
• Hinged grille opens with a flick of a finger and remains attached after opening
• Side-mount configuration for enclosure wall mounting
• Reverse airflow option on HF13 models to push/pull through higher static pressure
• Standard rope gasket for enclosure sealing
• Compatible cut-out sizes with common filter fan manufacturers
• Terminal block connections for straightforward wiring
• Optional thermostat available
• Size range: 4 in (102 mm) to 13 in (325 mm) fan diameters
• Free air flow range: approx. 21 CFM (36 m3/h) to 484 CFM (822 m3/h) depending on model
• Service life: approx. 40,000 to 100,000 hours depending on model
• Operating temperature examples: −4°F/−20°C to 149°F/65°C; other models: 14–131°F / −10–55°C

Industry Standards

• UL/cUL Listed; File No. E482010
• CE
• EAC
• Type 12 standard on all models
• IP54 option on all models except HF13
• IP55 option on all models except HF04

Specification Table (selected fields / example SKUs)
Note: table rows shown as lines (Catalog Number | Article Number | Airflow | Nominal Voltage | Height | Width | Depth | Max Current | Operating Temperature | Color | Color Code)
HF0524513 | 34275 | 12 ft³/min (20 m³/h) | 24V | 6.15 in (156 mm) | 6.16 in (156 mm) | 3.98 in (101 mm) | 0.35 A | −4 to 149°F (−20 to 65°C) | Graphite Black | RAL 9011
HF0524514 | 34194 | 35 ft³/min (59 m³/h) | 24V | 6.15 in (156 mm) | 6.16 in (156 mm) | 3.98 in (101 mm) | 0.35 A | −4 to 149°F (−20 to 65°C) | Light Gray | RAL 7035
HF0424414 | 34191 | 21 ft³/min (36 m³/h) | 24V | 4.42 in (112 mm) | 4.44 in (113 mm) | 3.15 in (80 mm) | 0.14 A | −4 to 149°F (−20 to 65°C) | Light Gray | RAL 7035
HF0448413 | 34354 | 21 ft³/min (36 m³/h) | 48V | 4.42 in (112 mm) | 4.44 in (113 mm) | 3.15 in (80 mm) | 0.06 A | −4 to 149°F (−20 to 65°C) | Graphite Black | RAL 9011
HF1026414 | 34204 | 159 ft³/min (270 m³/h) | 230V | 10.13 in (257 mm) | 10.14 in (258 mm) | 4.68 in (119 mm) | 0.19 A | 14–131°F (−10 to 55°C) | Light Gray | RAL 7035
Total SKUs listed on page: 93

Technical Specifications

• Material: Plastic
• Finish: Smooth matte
• Mounting: Enclosure side wall (side-mount)
• Seal: Standard rope gasket
• Grille: Hinged grille, remains attached after opening
• Electrical: Terminal block connections; nominal voltages vary by SKU (24V, 48V, 115V, 230V)
• Sizes: 4 in (102 mm) to 13 in (325 mm)
• Airflow: approx. 21 CFM (36 m³/h) to 484 CFM (822 m³/h) depending on model
• Operating temperature ranges (examples): −4 to 149°F (−20 to 65°C); 14–131°F (−10 to 55°C)
• Max current examples: 0.06 A up to 5 A (model dependent)
• Service life: approx. 40,000 to 100,000 hours (model dependent)
• Options: Reverse airflow (HF13 models); optional thermostat
• Standards/Approvals: UL/cUL (File No. E482010), CE, EAC, Type 12; IP54/IP55 options per model
• Total SKUs in family: 93
