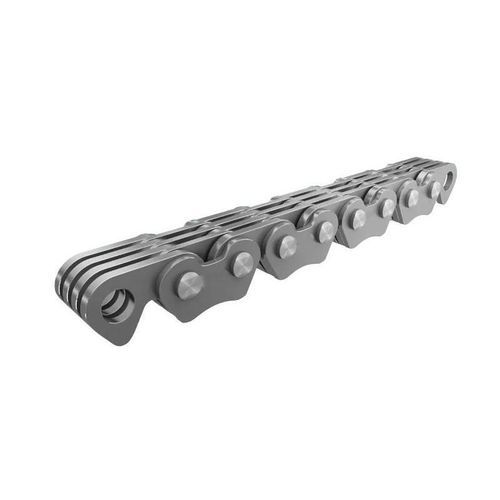

Transmission chain 05BT

steelrollertiming

Roller chain for engine timing is mainly used for automobile engine timing system, oil pump, balance shaft and common rail pump drive system etc. This chain is the key engine component with high strength and durability. - Parameter Table: - Chain No.: 05BT, 06BT, 06BT-2, 06BTH-2 - Pitch: 8.000 mm, 9.525 mm - Roller diameter: 5.65 mm, 6.35 mm - Width between inner plates: 4.60 mm, 5.75 mm, 5.72 mm - Pin diameter: 3.05 mm, 3.28 mm - Pin length: 12.15 mm, 12.50 mm, 22.90 mm, 25.10 mm - Inner plate depth: 7.65 mm, 8.20 mm - Plate thickness: 1.3 mm, 1.6 mm, 1.04 mm, 1.20 mm - Transverse pitch: -, 10.24 mm, 11.40 mm - Tensile strength: 8.5/1912 kN/lbf, 9.0/2025 kN/lbf, 16.9/3802 kN/lbf, 17.8/4005 kN/lbf - Weight per meter: 0.41 kg/m, 0.38 kg/m, 0.67 kg/m, 0.86 kg/m Technical Features: - High strength and durability - Used for engine timing, oil pump, balance shaft, and common rail pump drive systems - Key engine component
