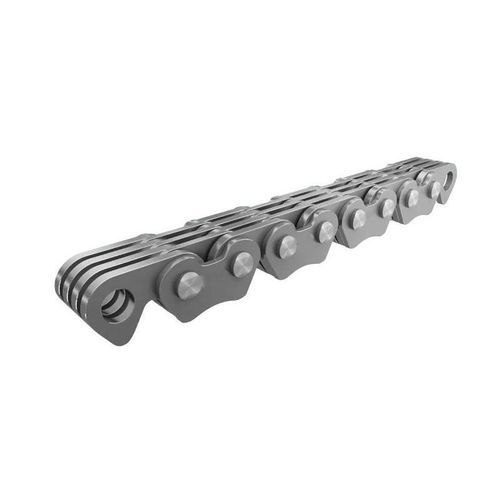

Transmission chain P7

steelrollertiming

Timing Bush chain for engine timing is mainly used for diesel engine timing system and the balance shaft system etc. Compared with the roller chain, it has simpler structure and higher wear resistance. - Technical Specifications: - Chain No.: P7, P7F1, 05C, 06D, 06DTF1, 06DTF2, 06DF2-2, 06DF3-2 - Pitch (P) (mm): 7.000, 8.000, 9.525 - Bush diameter max (mm): 4.00, 5.00, 6.35 - Width between inner plates b1 min (mm): 3.50, 3.40, 4.76, 3.80, 5.72, 4.40 - Pin diameter d2 max (mm): 2.70, 3.15, 4.45, 4.46 - Pin length L max (mm): 9.60, 9.80, 11.80, 10.70, 14.25, 14.55, 18.80, 21.70 - Inner plate depth h2 max (mm): 6.8, 7.6, 9.6 - Plate thickness t/t1 max (mm): 1.15, 1.20, 1.30, 1.35, 1.80, 1.75, 1.35/1.40, 1.50 - Plate thickness T max (mm): 1.00, 1.04, 1.30 - Transverse pitch Pt (mm): -, 8.30, 9.70 - Tensile strength min (kN/lbf): 6.9/1551, 8.5/1932, 9.0/2024, 14.5/3259, 16.2/3641, 18.7/4203 - Weight per meter q (kg/m): 0.31, 0.33, 0.35, 0.41, 0.57, 0.60, 0.76, 0.86 - Product type: Timing Bush Chains for Automobile Engine - Main application: Diesel engine timing system, balance shaft system - Features: Simpler structure than roller chain, higher wear resistance
