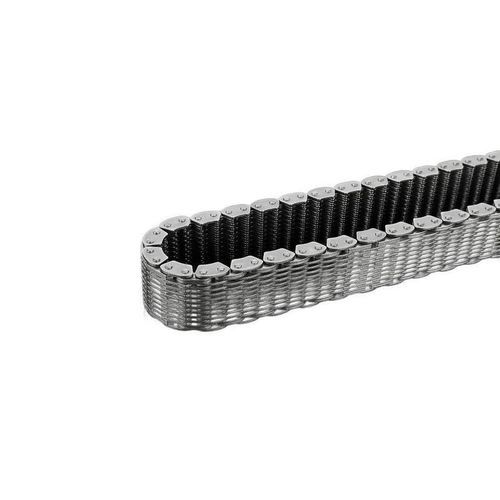

Drive chain CL06

transmissionsteelround

Round pin type silent chain is mainly used for transfer case and gearbox assembly drive system, which is the core component of the drive system. The chain is made from superior quality steel and the plates of which are austempered, which is especially suitable for various conditions such as high strength, high wear resistance, low noise and big torque etc. - Parameter Table: - Chain No.: CL06, CL06D, BC1252, SC1252 - Pitch: 9.525 mm, 12.780 mm - Chain width: 17.00 mm to 43.90 mm - Pin length: 22.7 mm to 49.70 mm - Plate depth: 11.57 mm, 15.50 mm - Plate thickness: 1.54 mm, 1.55 mm, 1.76 mm - Guide form: Outside - Number of plate: 13(6X7) to 29(15X14) - Tensile strength: 37/8318 to 112/25178 kN/lbf - Weight per meter: 1.28 kg/m to 3.85 kg/m Characteristics / Technical Specifications: - Material: Superior quality steel - Plates: Austempered for high strength and wear resistance - Applications: Transfer case and gearbox assembly drive systems - Features: High strength, high wear resistance, low noise, big torque
