Digital input module IP-IA-16DIN

IO-Link16-I16-channel

PRODUCT DESCRIPTION

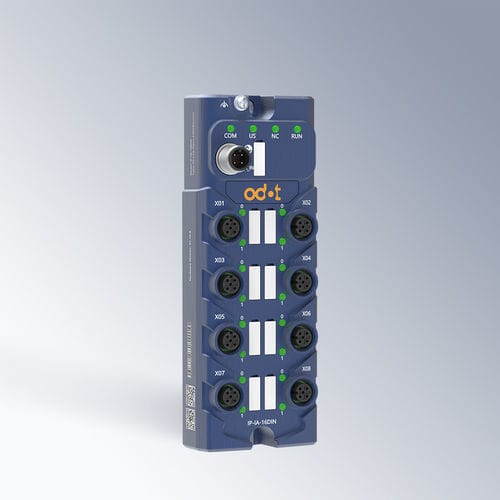

The ODOT IP-IA-16DIN is an industrial IO-Link V1.1 slave digital input module providing 16 NPN (Type 3, low-level) channels for reliable sensor and switch signal acquisition. Designed for distributed automation, the module incorporates configurable filtering and input-hold functions to reduce electrical interference and stabilize digital inputs. With IO-Link Data Storage support, device parameters are automatically saved and restored during replacement, simplifying maintenance and reducing downtime. The unit's compact IP67-rated housing and M12 connectivity make it suitable for harsh factory environments and decentralized I/O architectures.

Key Technical Features

• Signal stability: Configurable digital filtering and input-hold minimize noise and false triggering.
• Maintenance efficiency: IO-Link Data Storage automatically restores parameters after device replacement.
• Operational reliability: Status diagnostics (power, run, communication, error) and communication diagnosis support preventive troubleshooting.
• Flexible deployment: Compact IO-Link slave design with multiple M12 IO ports for distributed installation.

Technical Specifications

• Protocol: IO-Link V1.1 (slave)
• Transfer rate: COM2 (38.4 kbps) default
• Communication connector: M12 A-code 4-pin (C/Q, Us, GND)
• IO ports: 8 × M12 (5-pin) ports — 16 digital input channels
• Rated supply voltage (Us): 24 VDC
• Max module consumption: 50 mA @ 24 VDC
• Input type: Type 3, low level (NPN)
• Signal thresholds: "0" = -5 to +30 V (relative to Us); "1" = +11 to +30 V
• Input current (signal "1"): 2.5 mA
• Input delay: OFF→ON / ON→OFF max 500 μs
• Channel potential: not isolated between channels
• Filter: configurable
• Protection: reverse-polarity protection; overvoltage (Us > 30 V) and undervoltage (9–18 V) detection
• Indicators: power, run, communication, error; digital input channel LEDs (green)
• Dimensions: 160 × 60 × 35.5 mm
• Configuration: master and software configuration supported; IO-Link Data Storage supported

Application Scenarios

• Factory automation and production lines
• Sensor and switch signal acquisition
• Packaging machines and assembly lines
• Conveyors and material-handling systems
• Smart manufacturing / Industry 4.0 distributed I/O
• Decentralized monitoring and line diagnostics

Technical data

• Model: IP-IA-16DIN
• IO-Link: V1.1 slave
• Inputs: 16 digital NPN channels
• Ports: 8 × M12 (5-pin) IO ports; communication M12 A-code 4-pin
• Supply: 24 VDC; max 50 mA
• Dimensions: 160 × 60 × 35.5 mm
• Ingress protection: IP67
