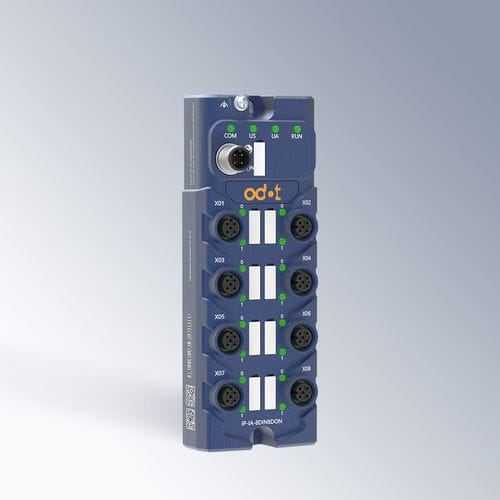

Digital I/O module IP-IA-8DIN8DON

IO-Link8-I/O8 NPN outputs

Product description
The IP-IA-8DIN8DON is a compact and reliable IO-Link slave module designed for industrial digital signal acquisition and output control applications. Featuring 8 NPN digital input channels and 8 NPN digital output channels, the module enables efficient field-level communication and control for modern industrial automation systems. The module integrates digital input monitoring and digital output control into a single IO-Link slave device. Configurable filter time and input holding functionality help reduce signal interference and maintain stable input status. IO-Link Data Storage enables automatic parameter backup and restoration, simplifying device replacement and reducing maintenance downtime. Designed for flexible industrial integration, the IP-IA-8DIN8DON is ideal for distributed automation systems, smart manufacturing equipment, and industrial control applications.

Benefits

• Simplify System Wiring: Combines digital input and output functions in one compact module, reducing installation complexity and cabinet space requirements.
• Improve Signal Stability: Input holding and configurable filtering functions help reduce electrical interference and improve operational reliability.
• Reduce Maintenance Downtime: IO-Link Data Storage enables automatic parameter recovery during module replacement, improving maintenance efficiency.
• Flexible Distributed Integration: Compact IO-Link slave architecture allows easy integration into distributed industrial automation systems.

Application scenarios

• Factory automation systems
• Smart manufacturing equipment
• Packaging machinery
• Conveyor and material handling systems
• Industrial sensor and actuator control
• Distributed I/O systems and production line automation
• Logistics and warehouse automation

Technical parameters (excerpt)
IO-Link Protocol: IO-Link V1.1 slave protocol
Transfer Rate: Default: COM2 (38.4kbps)
Vendor ID: 0x0651
Device ID: 0x81621F (8479263)
Communication Port: M12 A-code 4 Pin (needle end) — Pin1: 24V (Us), positive of system power; Pin2: 24V (Ua), positive of field power; Pin3: 0V (GND); Pin4: C/Q
Us (Rated supply voltage): 24 V DC
Ua (Rated supply voltage): 24 V DC
US/UA Galvanic Isolation: Not support
Module consumption: Max. 50mA @ 24VDC
IO Port: 8 Ports — 8 channels digital input, 8 channels digital output (M12, A-code, 5 Pin, hole end)
Terminal Type: 8 × M12 (hole end)
Port definition (X01~04): Pin1: 24V (positive of power output, provided by Us); Pin2: Signal 1 (digital input); Pin3: 0V; Pin4: Signal 2 (digital input); Pin5: FG (functional grounding)
Port definition (X05~08): Pin1: 24V (positive of power output, provided by Us); Pin2: Signal 1 (digital output); Pin3: 0V; Pin4: Signal 2 (digital output); Pin5: FG (functional grounding)

Digital Input:
Channel indicator: Support (green)
Input feature: Type 3, Low level (NPN)
Rated voltage: 24 V DC
Signal '0': -5V DC ~ +5V DC (Us power rail)
Signal '1': -30V DC ~ -11V DC (Us power rail)
Minimum voltage: -30 V DC
Maximum voltage: +5 V DC
Input current: 2.5 mA (for the signal '1', rated voltage input)
Input delay: OFF to ON: Max. 500 μs; ON to OFF: Max. 500 μs
Channel isolation: There is no isolation between channels
Filter: Configurable

Digital Output:
Channel indicator: Support (green)
Output type: NPN, Low level
Load capacity: Resistive load: 0.5 A; Inductive load: 12 W; Lamp load: 5 W
Rated output current of Pin1: 350 mA (single channel)
Output current of module: Max. 3.6 A
Minimum load resistance: 48 Ω
Residual current: Max. 10 μA (for signal '0')
Output delay: OFF to ON: Max. 100 μs; ON to OFF: Max. 200 μs
Switch frequency (examples): Rated power resistive load: COM1: 10 Hz; COM2: 35 Hz; COM3: 80 Hz. Rated power inductive load: COM1/COM2/COM3: 2.5 Hz. Rated power lamp load: COM1: 10 Hz; COM2: 12.5 Hz; COM3: 12.5 Hz
Channel isolation: There is no isolation between channels

Diagnosis & protection:
Status display: Power indicator, running state, communication state, running error indicator
Diagnosis function: Communication diagnosis
Power anti-reverse protection: Support
Us overvoltage detection: Support (Us > 30 V DC triggered)
Us undervoltage detection: Support (9 V DC ≤ Us ≤ 18 V DC triggered)

Dimensions: 160 mm × 60 mm × 35.5 mm
Weight: 305 g
Operating temperature: -30 °C ~ 60 °C
Storage temperature: -40 °C ~ 85 °C
Installation altitude: < 2000 m
ESD: Air discharge ±15 kV, contact discharge ±8 kV, performance class A; IEC 61000-4-2
EFT: Power port ±2 kV, communication port ±2 kV, performance class A; IEC 61000-4-4
Surge: Communication & IO Ports: ±1 kV DM; Power Ports: ±0.5 kV DM, ±0.5 kV CM; performance class A; IEC 61000-4-5
RS: IEC 61000-4-3; CS: IEC 61000-4-6
Product certification: CE certification
