Digital I/O module IP-IA-16DIPDOP

IO-Link16-I/OIP67

Product Description

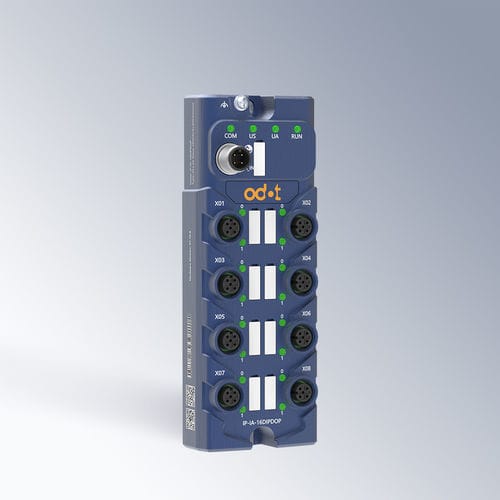

The IP-IA-16DIPDOP is an IO-Link V1.1 slave module for industrial digital signal acquisition and control. It integrates 16 configurable PNP digital input/output channels in a compact IP67 housing, allowing each channel to be set as DI or DO to simplify wiring and reduce hardware count.

The module supports configurable input filtering and input holding to reduce electrical interference and stabilise signal acquisition. Built-in IO-Link Data Storage saves and restores device parameters during replacement to minimise downtime. The module uses separate Us and Ua 24V supplies and provides M12 field and I/O connectors for easy integration in distributed I/O architectures.

Key Technical Features

• 16 configurable PNP DI/DO channels in a single IO-Link slave
• Configurable filtering and input hold to improve signal stability
• IO-Link Data Storage for automatic parameter restore on replacement
• Compact IP67 design for installation in harsh environments

Technical Specifications
Protocol: IO-Link V1.1 (slave)
Transfer rate: COM2 (38.4 kbps) default
Vendor ID / Device ID: 0x0651 / 0x81624F (8479311)
Field connector: M12 A-code 4-pin (needle); Pin1: Us 24V; Pin2: Ua 24V; Pin3: 0V; Pin4: C/Q
Power supply: Us = 24VDC, Ua = 24VDC; Us/Ua galvanic isolation: not supported
Module consumption: max. 50 mA @ 24VDC
IO ports: 8 × M12 (A-code 5-pin, socket), each port contains two configurable DI/DO (total 16)
Digital input: PNP type 3; rated 24VDC; input current 2.5 mA; configurable filter; input delay max 500 μs
Digital output: PNP high level; per-channel rated output 350 mA; module max output 3.6 A; resistive load 0.5 A; inductive 12 W; lamp 5 W; output delay OFF→ON max 100 μs, ON→OFF max 200 μs
Diagnostics: power, run, communication and error indicators; communication diagnosis; Us reverse polarity protection; over/under voltage detection
Mechanical & environmental: 160 × 60 × 35.5 mm; weight 305 g; operating −30 °C to 60 °C; storage −40 °C to 85 °C; protection IP67; installation altitude < 2000 m
EMC & safety: ESD ±15 kV air / ±8 kV contact; EFT ±2 kV; surge levels per IEC 61000 series; CE certified

Technical summary

• Model: IP-IA-16DIPDOP
• Channels: 16 configurable DI/DO (PNP)
• Protocol: IO-Link V1.1 (slave)
• Power: Us/Ua = 24VDC
• Protection: IP67
• Dimensions: 160 × 60 × 35.5 mm; Weight: 305 g
• Max module output: 3.6 A; per-channel: 350 mA
