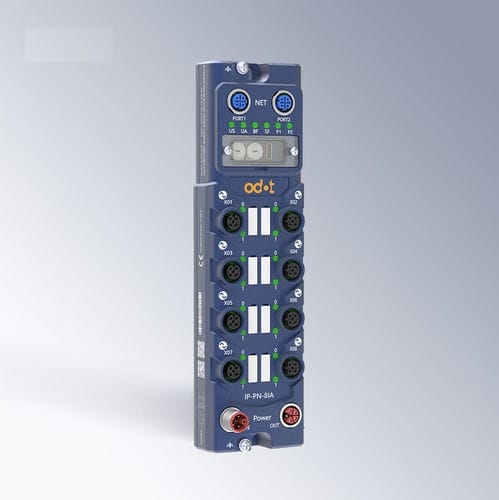

Digital I/O module IP-PN-8IA

ProfiNetIO-LinkEthernet

Product Description The IP-PN-8IA is a PROFINET RT slave and IO‑Link master module for industrial automation. It provides 8 M12 A‑code Class A IO‑Link master ports and supports configurable Pin 2 and Pin 4 functions per port, enabling up to 16 configurable digital input/output channels. The module implements PROFINET IO Device protocol with a minimum real‑time cycle of 1 ms and supports IO‑Link V1.1 master protocol. Designed for field use, the unit features an IP67 housing, integrated diagnostics and temperature monitoring, automatic protection mechanisms and online firmware upgrade without disassembly.

Key Benefits

• Simplify industrial networking by combining PROFINET communication and IO‑Link master functionality in a single compact module.
• Improve system flexibility through configurable DI/DO channels (Pin2/Pin4) per port to adapt to varied sensor and actuator requirements.
• Enhance operational reliability with integrated diagnostics and temperature protection to reduce unplanned downtime.
• Reduce maintenance effort thanks to a non‑potting design and online firmware upgrade capability.

Features & Functional Highlights The module supports PROFINET IO Device and PROFINET RT with a minimum cycle of 1 ms. It provides 8× M12 A‑code (5‑pin) IO‑Link Class A ports (hole end). Port pinout: Pin1 24 VDC (Us+); Pin2 configurable I/Q (DI/DO); Pin3 GND (Us-); Pin4 configurable C/Q (IO‑Link/DI/DO); Pin5 NC. Network connectivity via 2× M12 D‑code (4‑pin) Ethernet ports (1 IN, 1 OUT). IO‑Link transfer rates COM1/COM2/COM3 supported (4.8 kbps / 38.4 kbps / 230.4 kbps) with adaptive transfer. IO‑Link point‑to‑point maximum cable length 20 m. IO‑Link process data per port: up to 32 Bytes (module total 8×32 Bytes). Fieldbus capacity: Input max 1440 Bytes; Output max 1440 Bytes. Power supply rated 24 VDC; power interface 2× M12 L‑code (5‑pin). Module consumption max 200 mA @ 24 VDC. Output rated currents: Pin1/Pin3 1.6 A; Pin2/Pin3 2 A. Dimensions: 214 × 60 × 35.5 mm. Housing rated IP67. Supports online firmware upgrade, integrated diagnostics and temperature monitoring.

Application Scenarios Automotive manufacturing systems; packaging and assembly machinery; material handling and logistics automation; smart factory automation; industrial sensor and actuator integration; food & beverage production lines; distributed field I/O systems.

Products FAQ (selected)

• Q: Does the IP‑PN‑8IA support PROFINET RT communication? A: Yes. The module supports PROFINET RT with a minimum communication cycle of 1 ms.
• Q: Does the module support MRP ring redundancy? A: No. MRP media redundancy / ring network redundancy is not supported.
• Q: How many IO‑Link devices can be connected? A: The module provides 8 Class A IO‑Link master ports and can connect up to 8 IO‑Link devices.

Technical specifications

• Model: IP‑PN‑8IA
• Protocol: PROFINET IO Device; IO‑Link V1.1 master protocol
• PROFINET RT: Supported, minimum communication cycle 1 ms
• IRT / MRP / MRPD: Not supported
• Fieldbus Bytes: Input max 1440 Bytes; Output max 1440 Bytes
• IO‑Link ports: 8 × M12 A‑code (5‑pin), hole end, Class A
• IO‑Link port pinout: Pin1 24 VDC (Us+); Pin2 I/Q (DI/DO configurable); Pin3 GND (Us-); Pin4 C/Q (IO‑Link/DI/DO configurable); Pin5 NC
• IO‑Link process data per port: Input max 32 Bytes; Output max 32 Bytes; Module total 8 × 32 Bytes
• IO‑Link transfer rates: COM1 4.8 kbps; COM2 38.4 kbps; COM3 230.4 kbps (adaptive supported)
• IO‑Link maximum line length: Point‑to‑point 20 meters
• Network ports: 2 × M12 D‑code (4‑pin) Ethernet (1 IN, 1 OUT)
• Network pin definition: Pin1 Tx+; Pin2 Rx+; Pin3 Tx-; Pin4 Rx-
• Power supply (Us & Ua): Rated voltage 24 VDC
• Power supply current Us/Aa: Max. 8 A
• Power interface: 2 × M12 L‑code (5‑pin), 1 pin end (input) and 1 hole end (output)
• Module consumption: Max. 200 mA @ 24 VDC
• Output power supply rated currents: Pin1/Pin3: Rated output current 1.6 A; Pin2/Pin3: Rated output current 2 A
• Dimensions: 214 mm × 60 mm × 35.5 mm
• Protection: IP67 housing
• Diagnostics & maintenance: Integrated diagnostics, built‑in temperature monitoring, automatic protection mechanisms, online firmware upgrade (without disassembly)
