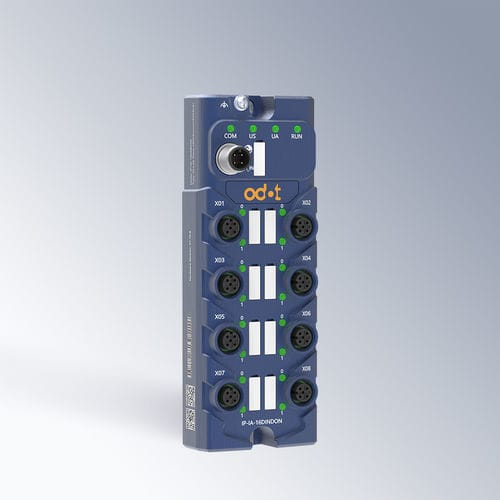

Digital I/O module IP-IA-16DINDON

IO-Link16-I/Ofor sensors

Product Description
The ODOT IP-IA-16DINDON is an IP67-rated IO-Link slave module for distributed industrial I/O. It provides 16 configurable digital channels that can be assigned as inputs (NPN low-side) or outputs (PNP high-side) per channel. The compact, rugged enclosure and IO-Link data storage simplify deployment, backup and replacement in harsh environments.

Benefits / Key Features

• Flexible I/O configuration: 16 channels configurable individually as DI or DO to reduce hardware variants and increase system flexibility.
• Improved signal reliability: configurable filtering and input hold functions to reduce electrical interference and false switching.
• Simplified maintenance: IO-Link Data Storage for automatic parameter backup and restoration during module replacement, speeding commissioning.
• Rugged IP67 design: compact form factor for distributed installation in harsh or wet environments.

Application Scenarios

• Factory automation systems
• Smart manufacturing equipment
• Packaging machinery
• Conveyor and material handling systems
• Industrial sensor and actuator control
• Distributed I/O and production line automation

Technical Specifications

• IO-Link Protocol: IO-Link V1.1 slave
• Transfer Rate: Default COM2 (38.4 kbps)
• Vendor ID: 0x0651
• Device ID: 0x81622F (8479279)
• Connectors: M12 A-code (IO-Link port needle end; IO ports M12 A-code 5-pin, hole end)
• Pinout (power/data): Pin1: 24 V (Us); Pin2: 24 V (Ua); Pin3: 0 V (GND); Pin4: C/Q (4-pin ports). IO ports (5-pin): Pin1: 24 V (Us); Pin2: Signal 1 (DI/DO); Pin3: 0 V; Pin4: Signal 2 (DI/DO); Pin5: FG
• Power supply (Us / Ua): 24 VDC
• Us/Ua galvanic isolation: Not supported
• Module consumption: Max. 50 mA @ 24 VDC
• IO ports / quantity: 8 ports, each with two DI/DO = total 16 configurable digital channels
• Terminal type: 8 × M12 (hole end)
• Digital input: Type 3, NPN (low level valid). Rated voltage: 24 VDC. Input current: 2.5 mA (signal 1). Input delay OFF→ON max 500 μs; ON→OFF max 500 μs. Configurable filter. No channel-to-channel isolation.
• Digital output: PNP high-side. Resistive load 0.5 A; inductive 12 W; lamp 5 W. Rated output current per pin: 350 mA. Module max output current: 3.6 A. Output delay OFF→ON max 100 μs; ON→OFF max 200 μs. Switching frequencies: COM1/COM2/COM3 varying as per rated loads.
• Diagnostics: power, run, communication and error indicators. Communication diagnosis supported. Us reverse-polarity protection supported. Overvoltage / undervoltage detection supported.
• Dimensions: 160 mm × 60 mm × 35.5 mm
• Weight: 305 g
• Configuration: Master configuration and software configuration supported; IO-Link Data Storage for parameter backup
• Environment: Operating -30 °C to 60 °C; Storage -40 °C to 85 °C; Protection: IP67; Installation altitude < 2000 m. EMC: ESD, EFT, surge, RS/CS per IEC standards (performance class A)
• Certifications: CE
