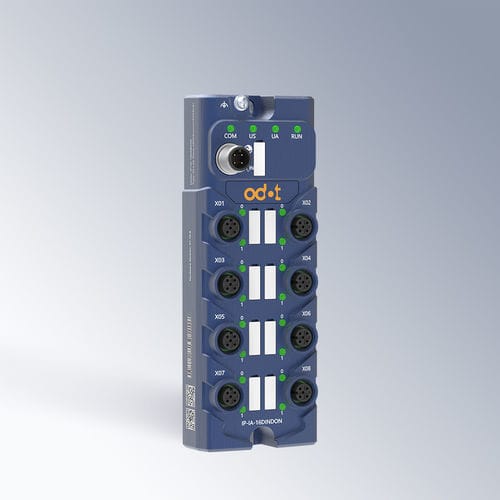

Digital I/O module IP-IA-16DINDON

IO-Link16-I/Odistributed

PRODUCT DESCRIPTION
The IP-IA-16DINDON is an IO-Link V1.1 slave digital I/O module designed for industrial signal acquisition and distributed control. It provides 16 configurable channels that can be assigned as NPN-type digital inputs or as digital outputs, enabling flexible I/O mapping to meet diverse automation requirements. The module integrates configurable filtering and input holding to improve signal stability and reduce interference.
The device supports IO-Link Data Storage for automatic parameter backup and restoration during module replacement, simplifying maintenance and minimizing production downtime. Compact dimensions and an IP67 rating allow installation in constrained or harsh field environments.

Benefits for industrial automation

• Flexible I/O configuration: 16 configurable channels reduce the need for multiple specialized modules and simplify inventory.
• Improved signal reliability: Configurable filtering and input holding reduce electrical noise and stabilize digital signals.
• Simplified maintenance: IO-Link Data Storage restores device parameters automatically during replacement, reducing commissioning time.
• Efficient distributed integration: Compact IO-Link slave design facilitates installation in distributed control architectures.

Technical specifications
Model: IP-IA-16DINDON
Protocol: IO-Link V1.1 (slave), Vendor ID: 0x0651, Device ID: 0x81622F (8479279)
Transfer rate: Default COM2 (38.4 kbps)
IO ports: 8 × M12 (5-pin, female), each port provides two configurable signals — total 16 digital channels
Channel types: Configurable DI/DO — DI: NPN (Type 3, low level valid); DO: PNP (high level)
Power supply: Us = 24 VDC; Ua = 24 VDC; galvanic isolation Us/Ua: not supported
Module consumption: Max. 50 mA @ 24 VDC
Digital input: Rated voltage 24 VDC; input current 2.5 mA (signal “1”); configurable filter; input delay OFF→ON max 500 μs, ON→OFF max 500 μs; no channel-to-channel isolation
Digital output: Single channel max 350 mA; module max output 3.6 A; resistive load 0.5 A; inductive load 12 W; lamp load 5 W; OFF→ON max 100 μs, ON→OFF max 200 μs; residual current max 10 μA (signal “0”)
Port definitions: Communication port M12 A-code 4-pin (Pin1: 24V Us, Pin2: 24V Ua, Pin3: 0V GND, Pin4: C/Q); I/O ports M12 5-pin per port (Pin1: 24V from Us, Pin2: Signal1 DI/DO, Pin3: 0V, Pin4: Signal2 DI/DO, Pin5: FG)
Protection & detection: Us anti-reverse protection, overvoltage detection (Us > 30 VDC), undervoltage detection (triggered 9–18 VDC)
Dimensions & weight: 160 × 60 × 35.5 mm; 305 g
Operating temperature: -30 °C to 60 °C; Storage temperature: -40 °C to 85 °C; Installation altitude: < 2000 m
Protection class: IP67
EMC & immunity: ESD air ±15 kV / contact ±8 kV (IEC 61000-4-2); EFT power/communication ±2 kV (IEC 61000-4-4); Surge communication & I/O ±1 kV DM, power ±0.5 kV DM/±0.5 kV CM (IEC 61000-4-5); RS/CS standards: IEC 61000-4-3 / IEC 61000-4-6
Diagnosis: Power, run, communication and error indicators; communication diagnostics supported
Certification: CE

Applications

• Factory automation and machine control
• Intelligent manufacturing equipment
• Distributed I/O in process and discrete systems

Compliance & environment
Protection grade IP67; Pollution degree as specified in technical documentation; EMC compliance with IEC 61000 series; CE marked
