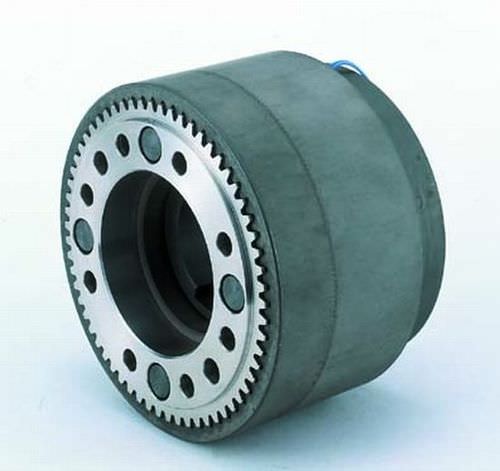

Toothed clutch MZ series
electromagneticzero-backlashfor high-torque applications

toothed clutch
toothed clutch
toothed clutch
toothed clutch
Add to favorites
Compare this product


Characteristics

Type
toothed
Operation
electromagnetic
Other characteristics
zero-backlash
Applications
for high-torque applications
Torque

Max.: 2,899 ft.lb

Min.: 18.5 ft.lb

Rotational speed

Max.: 5,000 rpm (31,415.93 rad.min-1)

Min.: 1,400 rpm (8,796.46 rad.min-1)

Description

MZ electromagnetic tooth clutch features zero backlash and a zero drag torque in disengaged mode (as both faces separate completely). The MZ series clutches can be used in either wet or dry applications and slippage is non-existent when the clutch is engaged as the driving torque is via teeth. The tooth engagement clutches also provide the highest torque per size of any electromagnetic clutch style and due to the minimal tooth wear the MZ series has an extremely long operational life. Moreover, as the clutches are supplied with armature assembly so it should be bolted into customer's gear, pulley or coupling. ZERO BACKLASH The MZ series provides minimal backlash. Backlash can be totally eliminated as an option. ZERO DRAG TORQUE There is no drag torque in the disengaged mode because both faces seperate completely. NO SLIP Driving toque is via teeth, therefore slippage is non-existent when the clutch is engaged. WET / DRY APPLICATIONS The MZ series clutches can be used in either wet or dry applications. HIGH-TORQUE COMPACT DESIGN The MZ Series tooth engagement clutches provide the highest torque per size of any electromagnetic clutch style. FLEXIBLE MOUNTING Clutches are supplied with armature assembly only which should be bolted into customer's gear, pulley or coupling. LONG LIFE Since tooth wear is minimal, the MZ series has an extremely long operational life.
