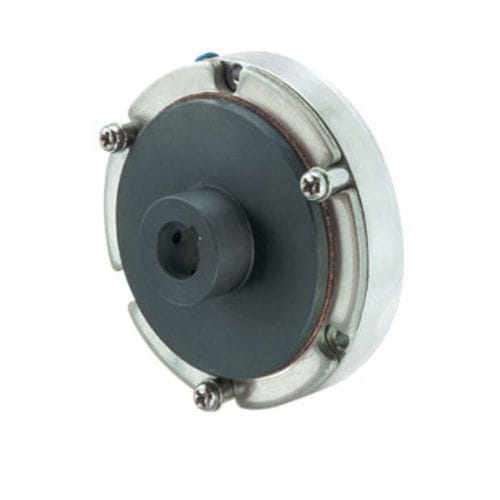

Disc brake FNB series
electromagneticspringemergency

disc brake
disc brake
Add to favorites
Compare this product


Characteristics

Type
disc
Operation
electromagnetic, spring
Other characteristics
emergency
Torque

Max.: 6 ft.lb

Min.: 0.74 ft.lb

Description

The FNB Series features a unified, one piece friction disk and pressure plate. This helps in eliminating noise and/or contact as will not be any loose parts when power is applied. This also provides for a very quick brake release time. It does not contain a hub but that can be supplied separately by the user at an economical cost. The brake is engaged using springs that are not at all affected by minor temperature or voltage changes. The device has few moving parts. It comes with a spacer collar to set the air gap for the hub. It is ideally suited for applications with space constraints as it has compact design. The device is also suitable for emergency stopping and brake for holding. BRAKE FOR HOLDING AND EMERGENCY STOPPING The friction disk and the pressure plate are one piece so when the power is applied there are no loose parts, so there is no chance of noise and/or contact. This also makes brake release time very quick. FLEXIBLE HUB DESIGN, LOWEST COST OPTION The FNB series does not come with a hub (shown in black in the picture). The hub is customer supplied, but this provides the lowest cost option available. FAST RESPONSE BRAKE FOR HOLDING AND EMERGENCY STOPPING The friction disk and the pressure plate are one piece so when the power is applied there are no loose parts, so there is no chance of noise and/or contact. This also makes brake release time very quick. FLEXIBLE HUB DESIGN, LOWEST COST OPTION The FNB series does not come with a hub (shown in black in the picture). The hub is customer supplied, but this provides the lowest cost option available.
