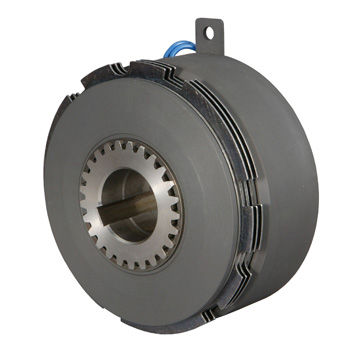

Disc clutch MWC series
multiple-discelectromagneticfor high-torque applications

disc clutch
disc clutch
disc clutch
Add to favorites
Compare this product


Characteristics

Type
disc, multiple-disc
Operation
electromagnetic
Applications
for high-torque applications
Torque

Max.: 8,850 ft.lb

Min.: 18 ft.lb

Rotational speed

Max.: 4,000 rpm
(25,132.74 rad.min-1)

Min.: 900 rpm
(5,654.87 rad.min-1)

Power

Max.: 175 W

Min.: 12 W

Description

Multiple disk clutches designed for high torque small environment. Clutches are designed to work in oil. Multiple disks produce high torque in a compact design. Separate drive cup allows for easy connection to your gear or pulley. Special oil path grooves in the friction plates allow for quick engagement and response time. Because clutches are used in oil lubrication they have excellent heat dissipation. HIGH-TORQUE COMPACT DESIGN The MW series are designed as extremely compact multiple disc units that deliver high torque rates. LONG LIFE AND LOW MAINTENANCE The MW series stationary field design and oil lubrication system significantly reduce wear and maintenance while increasing operational life. QUICK RELEASE TIME Separator springs between the friction plates allow for quick disconnect when the power is released. These springs also keep the disks from making contact with each other in the disengaged mode. FAST TORQUE BUILDUP An efficiently etched oil path on the friction disk, coupled with special treatment of the friction disks ensures fast response and release time. HIGH HEAT DISSIPATION The oil lubrication system provides excellent heat dissipation making the MW series suitable for heavy duty operation.

VIDEO
