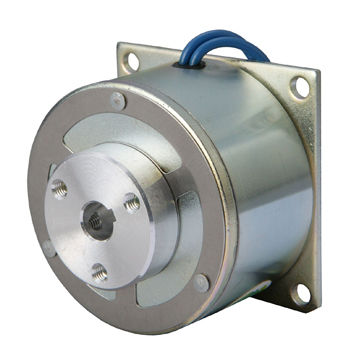

Disc brake AMB series
electromagnetic

disc brake
disc brake
disc brake
Add to favorites
Compare this product


Characteristics

Type
disc
Operation
electromagnetic
Torque

Min.: 0.183 ft.lb

Max.: 6 ft.lb

Power

Min.: 3 W

Max.: 12 W

Rotational speed

3,600 rpm (22,619.47 rad.min-1)

Description

Brake designed for general industrial application units feature zero backlash, armature hub, and field assemblies that can accommodate bearings for additional shaft support. EASY MOUNTING AND MAINTENANCE The brake flange mounts to the customer's machine via the four mounting holes. The bore of the brake can also be used to house a bearing which can reduce the overall length of the machine and cost because the brake body acts as as bearing housing. ZERO BACKLASH By mounting the armature to the hub via leaf springs, backlash is minimized and armature rattle is eliminated. CONTROLLABLE RESPONSE TIME Variations in acceleration or deceleration times and slip torque can be achieved by controlling the applied current. FAST RESPONSE/ Elimination of splines provides faster response and high performance by overcoming friction in the armature and hub. HIGH HEAT DISSIPATION The AM series units perform relentlessly year after year, even in heavy duty applications, due to their excellent heat dissipation.
