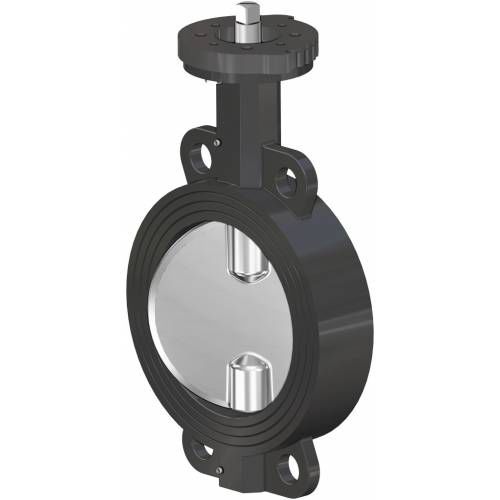

Butterfly valve ITEM 270
manualwaferfor water treatment

Butterfly valve - ITEM 270 - OMAL Spa - manual / wafer / for water treatment
Butterfly valve - ITEM 270 - OMAL Spa - manual / wafer / for water treatment
Butterfly valve - ITEM 270 - OMAL Spa - manual / wafer / for water treatment - image - 2
Butterfly valve - ITEM 270 - OMAL Spa - manual / wafer / for water treatment - image - 3
Add to favorites
Compare this product

Characteristics

Type
butterfly
Operation
manual
Body
wafer
Applications
for water treatment, for industrial applications, for the chemical industry, for the food industry, for oil industry applications, for the pharmaceutical industry, for the gas industry, for the paper industry, for the mining industry, for marine applications, turbine, for automobiles, for shipbuilding, for machine tools, power line
Material
metal, cast iron
Other characteristics
ISO, standard, ANSI, ATEX
DN

Max.: 200 mm
(7.874 in)

Min.: 40 mm
(1.575 in)

Pressure

Max.: 16 bar
(232.1 psi)

Min.: 10 bar
(145 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -50 °C
(-58 °F)

Description

Butterfly valve “metal-metal” for mounting between flanges, “Wafer” type ITEM 270 Body: Cast iron Butterfly: Cast iron ITEM 474 Body: CF8M Butterfly: CF8M STANDARD EXECUTIONS: - Valve type 270: body and butterfly in cast iron. - Valve type 474: body and butterfly in AISI 316. - Face to face as per ISO 5752. - Head valve as per ISO 5211. - Valve leakage approximately 1,5-2%. ON REQUEST: - Models from DN 40 to DN 400 with working temperature from -50°C to +500°C, are available on request. - For further information, please contact our technical offices. CERTIFICATIONS: 2014/34/EU ATEX configuration to request at time of order
