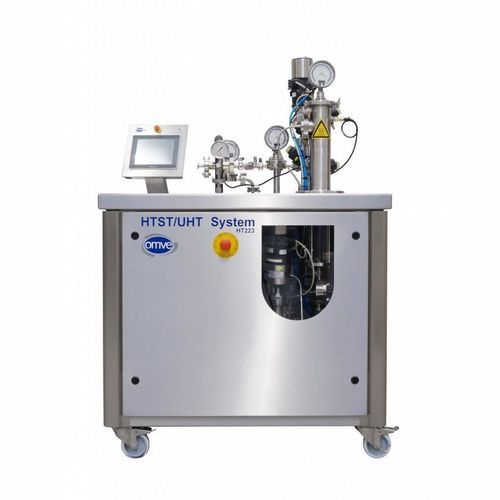

UHT sterilization unit HT223

for the food industry

Overview
Direct steam injection (DSI) requires precise control of the injected steam to achieve an exact product temperature. In the flash tank the product is rapidly cooled under vacuum (approx. 0.2 bar(a)) and the flash tank pump transfers the product through the system. OMVE's HT223 is a fully hygienic laboratory DSI unit with an integrated flash tank and a high degree of automation. It can be used as an add-on to existing UHT systems and can be fully controlled via HT220 or HT320 controllers. Nominal capacity: 20–200 l/h.

Unique features

• Aseptic design for hygienic processing
• Automatic CIP/SIP capability
• High degree of automation for user-friendly operation
• Flash tank pump outlet pressure up to 20 bar
• Flash tank cooling vacuum approx. 0.2 bar(a)

Downloads (available documents)

• HT223 & HT323 DSI Systems: Advanced In-Line Sterilization Solutions (product brochure/PDF)
• Heat Treatment range (PDF)

Heat treatment range (related systems)

• HT223 Laboratory DSI System
• HT207/HT208 Lab Can Retort
• HT323 Direct UHT Pilot System with Steam Injection
• HT226 SSHE System
• HT324 Steam Infusion / Injection UHT Pilot System
• HT220DSI Direct/Indirect HTST/UHT Lab System
• HT220 Indirect HTST/UHT Lab System
• HT320 Indirect HTST/UHT Pilot System
• HT326 Indirect UHT/HTST Pilot System with SSHE
• HT205 Spray Pasteurizer

Technical specifications

• Process type: Direct Steam Injection (DSI) with flash tank
• Function: Rapid heating by steam injection and rapid cooling under vacuum in the flash tank
• Control: Can be fully controlled by OMVE HT220 or HT320 systems
• Nominal capacity: 20 l/h to 200 l/h
• Flash tank cooling vacuum: approx. 0.2 bar(a)
• Flash tank pump outlet pressure: up to 20 bar
• Design: Fully hygienic / aseptic construction
• CIP/SIP: Automatic
• Application: Add-on to existing UHT systems for in-line sterilization and pilot testing
