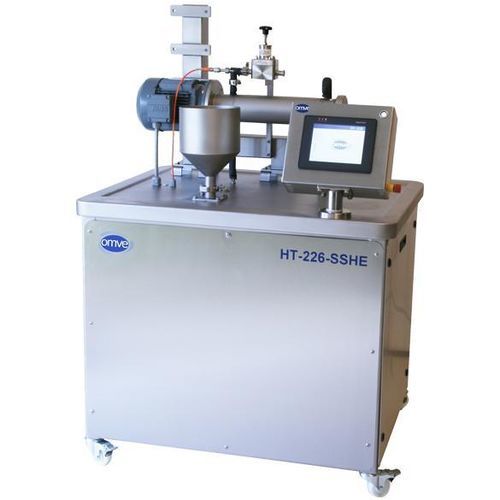

Scraped surface heat exchanger HT226

liquid/liquidcustom-madehigh-pressure

Product description
The OMVE HT226 is a HTST/UHT scraped-surface heat exchanger (SSHE) pilot system designed for continuous processing of high-viscosity products and products containing large particles. The HT226 gives R&D departments a flexible, reliable unit to mimic full-scale production operations, supporting scale-up, formulation development, product optimization, shelf-life testing and organoleptic analysis.

Design and hygienic features
The OMVE SSHE features a hygienic design for effective CIP and minimal contamination during processing. Barrels are removable for manual cleaning. With special bearings and high-pressure seals the SSHE withstands pressures up to 10 bar, making it suitable for very viscous products and for simulating industrial high-pressure processes.

Unique features

• Industrial A-brand components
• Modular, customizable construction
• Built-in CIP & SIP
• High level of automation
• Low product hold-up

Downloads

• HT226 Scraped Surface Heat Exchanger (product brochure)
• Heat Treatment range (overview)

Technical specifications

• Type: HTST/UHT scraped-surface heat exchanger (SSHE) pilot system for continuous flow
• Designed for products with high viscosities and/or large particles
• Typical use: R&D, scale-up, formulation development, product optimization, shelf-life studies, organoleptic analysis
• Hygienic construction for effective CIP; barrels removable for manual cleaning
• Seals & bearings: special bearings and high-pressure seals
• Maximum operating pressure: up to 10 bar
• Suitable to simulate industrial high-pressure processing of very viscous products
• Built-in CIP & SIP functionality
• Low product hold-up to minimize losses and residence time
• Modular, customizable construction and high automation level
• Certifications: OMVE systems CE marked (see global site)
