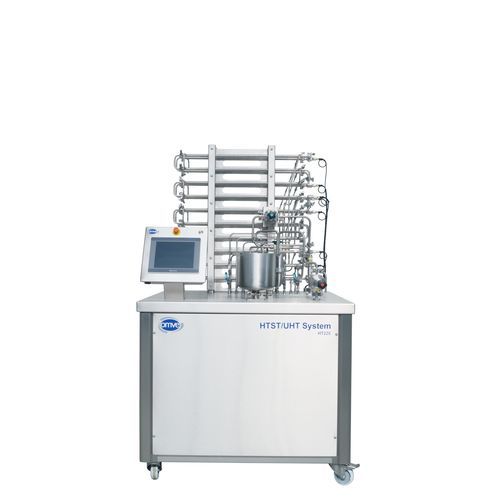

Laboratory sterilizer HT220 series
heatcompactUHT

laboratory sterilizer
laboratory sterilizer
laboratory sterilizer
laboratory sterilizer
Add to favorites
Compare this product


Characteristics

Laboratory/process
laboratory
Sterilization method
heat
Other characteristics
compact, UHT
Applications
for the food industry, for the pharmaceutical industry
Temperature range

Min.: 0 °C
(32 °F)

Max.: 160 °C
(320 °F)

Capacity

Min.: 10 l
(2.64 gal)

Max.: 20 l
(5.28 gal)

Description

Flexible, modular, future-proof The HT220 system is highly versatile. It allows you to run a trial with a less than three liters of product, minimizing the amount of ingredient that is required, as well as the time required for preparation, set-up and processing. Moreover, the HT220 Lab UHT/HTST System helps improve R&D activity by allowing you to conduct a greater number of trials over the course of the day. The HT220 series offers different levels of automation and configuration. The available heat treatment modules include the tubular heat exchanger, plate heat exchanger, scraped surface heat exchanger (SSHE) and direct steam injection (DSI) system. Furthermore, the HT220 can be integrated with an inline homogenizer and an inline deaerator. With the HT220 series, you can configure a pilot line with downstream equipment, including buffer tanks, fermentation tanks, and hygienic or aseptic fillers. Our HT220 is available with a nominal capacity of 20L/h or 50L/h. Unique features • User-friendly design • Sanitary and aseptic design • Easy maintenance access • Fully CIP and SIP ready • High level of automation • Extensive level of additional accessories • Full integration with the homogenizer and deaerator
