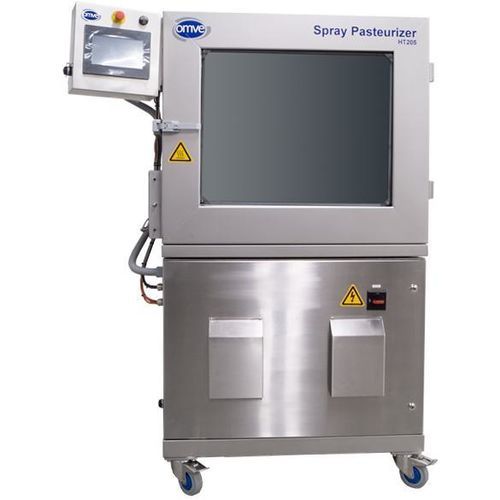

Tunnel pasteurizer HT205

fully-automaticcompactbench-top

Overview
The HT205 is a mini tunnel spray in-container pasteurizer for small sample sizes in R&D and laboratory environments. It replicates full-scale tunnel pasteurization while minimising power and water use and reducing time and product quantity required for trials.

Details
The HT205 simulates industrial tunnel pasteurisers on a compact footprint. It provides automated control and programmable thermal profiles to reproduce production scenarios without the need for a full-size tunnel.

Operational features

• Simulates industry tunnel pasteurisers
• Fully automatic control
• Touchscreen operation
• Fully programmable temperature-time curve
• Data logging

System capabilities
The system accepts a temperature sensor that can be placed inside a dummy bottle to monitor the coldest spot. HT205 calculates the pasteurization value (PU-value) and, with high heating capacity, supports very fast heating curves to accurately replicate industrial processes. Adjustable parameters let operators reproduce a wide range of production scenarios while optimising resource use.

Downloads

• Heat Treatment range (PDF)
• HT205 Spray Pasteurizer (PDF)

Technical specifications

• Product type: Mini tunnel spray in-container pasteurizer for small sample sizes
• Purpose: Elimination of residual bacteria post-sealing; R&D and lab simulation
• Control: Fully automatic with touchscreen operation
• Programmability: Fully programmable temperature-time curve
• Monitoring: Internal temperature sensor placement (dummy bottle) to record coldest spot
• Processing metric: Calculates pasteurization value (PU-value)
• Performance: High heating capacity enabling very fast heating curves
• Data: Data logging included
• Efficiency: Minimises power and water usage and reduces product quantity and time required for pasteurization
