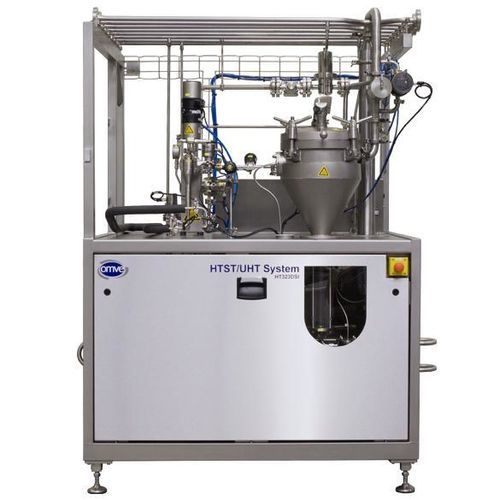

Laboratory sterilizer HT323

steamUHT

Product description
Direct steam injection (DSI) requires highly accurate steam control. The addition of a flash tank and flash tank pump in many DSI systems complicates control and cleaning. OMVE has designed a fully sanitary DSI system with a high level of automation to simplify operation and hygiene management. The system is available as a standalone unit or can be fully controlled through the HT320 system. Nominal capacity ranges from 20 to 1000 L/h.

Unique features

• Hygienic design
• Extremely easy to operate
• Fully CIP and SIP ready
• High level of automation
• 20 bar flash tank pump outlet pressure
• 0.2 bar(a) vacuum for maximum cooling in the flash tank

Downloads

• HT223 & HT323 DSI Systems: Advanced In-Line Sterilization Solutions (PDF)
• Heat Treatment range (PDF)

Heat treatment range (related products)

• HT223 Laboratory DSI System
• HT207/HT208 Lab Can Retort
• HT323 Direct UHT Pilot System with Steam Injection
• HT226 SSHE System
• HT324 Steam Infusion / Injection UHT Pilot System
• HT220DSI Direct/ Indirect HTST/UHT Lab System
• HT220 Indirect HTST/UHT Lab System
• HT320 Indirect HTST/UHT Pilot System
• HT326 Indirect UHT/HTST Pilot System with SSHE
• HT205 Spray Pasteurizer

Technical specifications

• Technology: Direct Steam Injection (DSI), fully sanitary design
• Operation: High level of automation, user-friendly control
• Integration: Available as standalone or fully controlled through HT320 system
• Nominal capacity: 20–1000 L/h
• Flash tank pump outlet pressure: 20 bar
• Flash tank vacuum: 0.2 bar(a) for maximum cooling
• CIP/SIP: Fully CIP and SIP ready
• Design emphasis: Hygienic construction and easy cleaning
