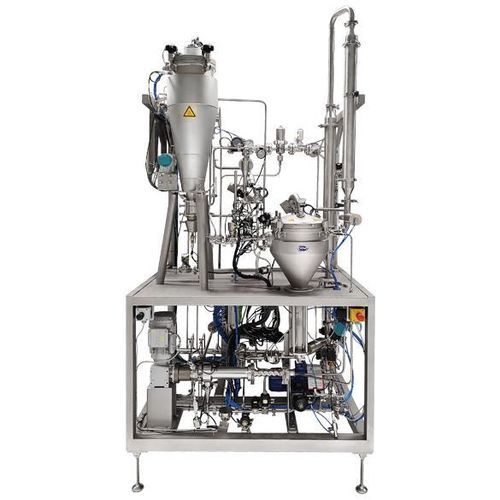

Industrial steamer HT324

Overview
The HT324 combines Direct Steam Infusion and Direct Steam Injection (DSI) in a single in-line UHT heat-treatment system for sensitive food products. The technology provides very fast heating followed by vacuum flash cooling to achieve high spore reduction while minimising thermal impact on product quality. The unit can operate as a stand-alone system or be integrated and controlled via the HT320. Nominal capacities: 100 L/h or 200 L/h.

Unique features

• User-oriented control and automation
• Sanitary design for effective cleaning
• Automatic CIP and SIP capability
• Extremely short holding times to limit thermal exposure
• High level of process control and monitoring
• Flash-tank pump outlet pressure: 20 bar
• Flash-tank vacuum: 0.2 bar(a) for maximum cooling

Technical specifications

• Model: HT324
• Technology: Direct Steam Infusion and Direct Steam Injection (DSI)
• Process type: In-line direct steam sterilization (UHT/heat treatment)
• Nominal capacity: 100 L/h or 200 L/h
• Cooling method: Vacuum flash tank
• Flash-tank vacuum: 0.2 bar(a)
• Flash-tank pump outlet pressure: 20 bar
• Control: Stand-alone or integration with HT320 control system
• Cleaning: Automatic CIP and SIP capable
• Holding times: Very short (designed to minimise heat impact)

Applications

• Sensitive liquid food products requiring high spore kill and minimal quality degradation
• Dairy-based beverages, plant-based drinks, sauces and soups
• Liquid egg, protein concentrates and other heat-sensitive formulations

Why OMVE

• Established expertise since 1993 in R&D and pilot-plant equipment
• Preferred supplier to leading multinational food manufacturers
• Systems engineered and manufactured to industry standards
• Two-year warranty and CE certification
• Comprehensive service and spare-parts support

Downloads

• HT223 & HT323 DSI Systems: Advanced In-Line Sterilization Solutions (brochure PDF)
• Heat Treatment range (brochure PDF)
