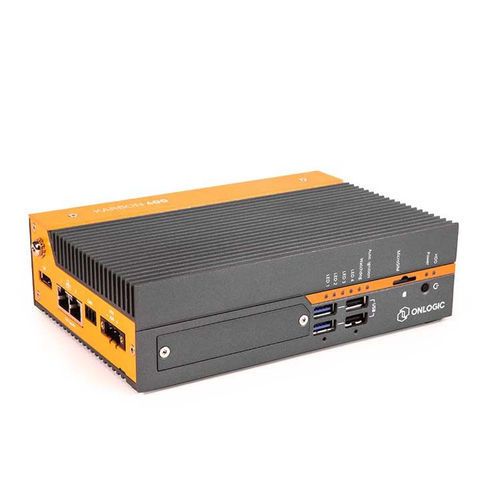

Box PC Karbon 410

EDGEVESA mountingDIN rail

Overview
Karbon 410 integrates the IoT-capable Intel® Atom® x6000E (Elkhart Lake) processors into a low‑profile, rugged, fanless system designed for edge, gateway and embedded controller deployments. Available with Intel Atom x6211E (dual‑core) or x6425E (quad‑core), the platform supports automotive power control and industrial connectivity.

Highlights

• Intel Atom x6211E (2 cores) or x6425E (4 cores)
• Front/rear I/O: 2x USB 3.2 Gen2, 2x USB 2.0, DisplayPort, 2x 1GbE (PoE+ optional), CAN bus
• Expansion: COM/GPIO, full‑size mPCIe, M.2, multiple storage options

Rugged design & thermal
The chassis uses Hardshell™ fanless technology for passive cooling and protection against dust, moisture and chemicals. Rated for -40°C to 70°C operation and mountable on wall, DIN rail or VESA. Tested to IEC/MIL shock and vibration standards and certified to key industry EMC and safety standards.

Connectivity & embedded features
Standard features include dual USB 3.2, dual USB 2.0, DisplayPort, dual GbE (PoE+ optional), CAN bus terminal, 3FF micro‑SIM slot and automotive ignition control for programmable on/off states. Optional modules provide 4G LTE and Wi‑Fi/Bluetooth. TPM 2.0 and PTT in BIOS available.

Technical specifications

• Manufacturer: OnLogic
• Model: Karbon 410
• Hardware Line: Rugged, compact
• Cooling: Fanless (passive)
• Processor: Intel Atom x6211E (Dual‑Core) or x6425E (Quad‑Core), Elkhart Lake family
• Memory: DDR4 SO‑DIMM, up to 32 GB (2 slots)
• Graphics: Intel UHD Graphics
• Display: 1x DisplayPort
• I/O: 2x USB 3.2 Gen2, 2x USB 2.0, 2x 1GbE (PoE+ opt.), CAN bus, 3FF micro‑SIM
• Expansion: full‑size mPCIe, M.2 2230 E‑key, M.2 B‑key (storage), mSATA
• Storage: M.2 3042/2260/2280 B‑key (PCIe x2/SATA), mSATA (shared)
• Power: DC 9–48 V input, 3‑pin terminal block; automotive ignition control
• Dimensions: 180 x 123 x 50 mm
• Operating temperature: -40°C to 70°C
• Certifications: CE, FCC, EN 60601‑1‑2, EN 50121, IEC 60945, MIL‑STD‑810G, RoHS, TAA, UKCA, UL
• Additional: Optional 4G LTE, Wi‑Fi/Bluetooth, TPM 2.0, 2‑year limited warranty
