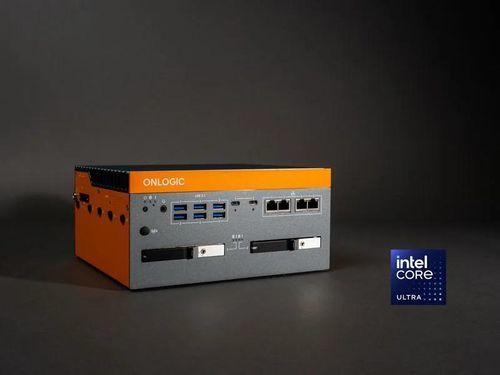

EDGE PC Karbon 522

boxVESA mountingembedded

Description
The Karbon 522 is a rugged, fanless industrial computer engineered for demanding edge environments. It leverages Intel Core Ultra processing, supports wide-temperature operation and automotive power input, and features dual 2.5" hot-swappable storage drives for rapid maintenance and maximum uptime.

Highlights

• Dual hot-swap 2.5" SSD bays
• 6x USB (USB 3.2 Gen 2) and 2x Thunderbolt 4 (USB-C)
• 4x 2.5 GbE LAN (Intel I226IT)
• Operating temperature range: -40°C to 70°C
• Automotive power input with programmable ignition timing (12–48 VDC via 5-pin terminal block)
• Intel Core Ultra processing for enhanced AI capability

Overview
The Karbon 522 supports Intel Core Ultra processors (Series 1 Meteor Lake and Series 2 Arrow Lake options) and is designed for edge AI performance and scalability. The system can support up to 96 GB DDR5 memory (5600 MT/s) and offers multiple robust storage options including M.2 and hot-swap 2.5" drives. The platform can be configured with vPro-capable CPUs for remote management (depending on CPU selection).

Rugged design & hot-swap storage

• Passively cooled, fanless design built to withstand continuous vibration and shock (MIL-STD-810H testing)
• Dual 2.5" SSD hot-swap bays (7.0–9.5 mm drive height) enabling drive replacement or secure destruction without system downtime
• Industry-leading environmental rating for mobile and harsh applications
• Certifications include UL, RoHS, FCC, CE and EMC testing for industrial, medical (60601-1-2), in-vehicle, rail, and maritime use
• Flexible mounting options: DIN, wall, VESA, and rack mountable

Versatile connectivity

• Front I/O: power button, factory reset switch, 3.5 mm audio jack, 6x USB 3.2 Gen 2 Type-A, 2x Thunderbolt 4 (USB-C, 40 Gb/s), 4x 2.5 Gb LAN
• Rear I/O / side: up to 4x COM (RS-232/422/485), optional CAN, optional DIO, 2x DisplayPort
• Onboard I/O includes: 4-pin terminal block power, 3FF SIM slot (mapped to M.2 B-Key), 6x antenna mounting holes, grounding lug, remote switch, 2x DisplayPort 2.1 UHBR20, dual COM connections and fan hat connector

Caractéristiques / Spécifications techniques

• Brand: OnLogic
• Model: Karbon 522
• Hardware line: Rugged
• Cooling type: Fanless (passive)
• Processor socket: Onboard (BGA)
• Processor generation: Intel® Core™ Ultra (Series 1 Meteor Lake; Series 2 Arrow Lake options)
• Processor examples: Intel® Core™ Ultra 5 125H; Intel® Core™ Ultra 5 135H; Intel® Core™ Ultra 7 165H
• Processor TDP: 28 W
• Processor features: AMT support; Embedded lifecycle; Intel vPro® (depending on CPU)
• Memory type: DDR5
• Memory capacity: Up to 96 GB
• Memory clock speed: 5600 MT/s
• Memory channels: Dual channel
• Graphics/GPU: Intel ARC Graphics
• LAN controller: Intel® I226IT (4x 2.5 GbE LAN)
• Front I/O summary: 1x power button; 1x factory reset switch; 1x 3.5 mm audio jack; 6x USB 3.2 Gen 2 Type-A; 2x Thunderbolt 4 (USB-C); 4x 2.5 Gb LAN
• Rear / onboard I/O summary: 4x COM (RS-232/422/485); optional CAN; optional DIO; 2x DisplayPort; 1x 4-pin terminal block power; 1x 3FF SIM slot mapped to M.2 B-Key; antenna mounts; grounding lug; remote switch
• Expansion options: 1x M.2 2280 M-Key (PCIe Gen4 x4); 1x M.2 B-Key (PCIe Gen4 x2 / USB2 / PCIe Gen4 x1 / USB3.2 Gen1); 2x 2.5" SATA hot-swap bays
• Storage options: 1x M.2 2280 PCIe Gen4.0 x4; additional M.2 (PCIe/SATA) and 2.5" hot-swap SSD/HDD
• Number of displays supported: Up to 4
• Display outputs: 2x DisplayPort 2.1 (UHBR20)
• Mechanical dimensions: 106 mm x 177 mm x 225 mm
• Weight: 3.31 kg
• Case materials: Aluminum extrusion and steel
• Power input voltage: 12 V minimum — 48 V maximum (wide input DC)
• Power input connector: 5-pin terminal block
• Automotive power features: Automotive intelligence; ignition sensing; wide input (12–48 VDC)
• Environmental operating temperature: -40°C to 70°C
• Humidity (non-condensing): 5% to 95% (operating)
• Shock & vibration: Tested per IEC 60068-2-27 and MIL-STD-810G (516.6)
• Regulatory & certifications: CE, FCC, UL variants, RoHS, WEEE, EN 55032/55035, EN 60601-1-2 (4th ed.), EN 60945, EN 62368-1, TAA compliance, UKCA (where applicable)
• Additional features: Onboard TPM 2.0 (Infineon SLB9672), 4G LTE support, CAN bus, DIO, ignition sensing, remote management via Intel vPro (when configured), Secure Boot support, optional AI accelerators (e.g., Hailo)
• Included accessories: 1x 4-pin terminal block mating connector
