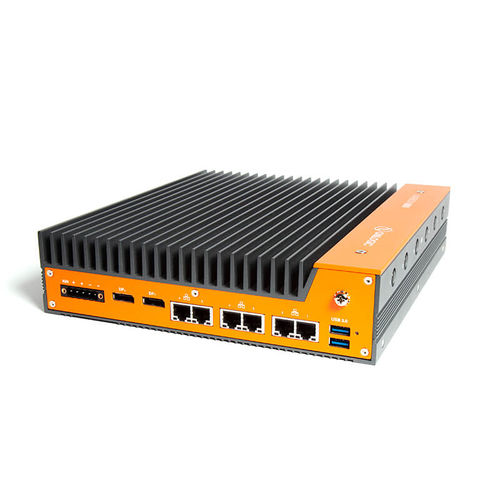

EDGE PC Karbon 801

embeddedIntel® Core™ i series13th Generation Intel® Core™

Overview
Karbon 801 integrates 12th/13th Gen Intel Core™ processing and extensive industrial connectivity into a compact, low‑profile rugged chassis designed for harsh edge environments. It targets industrial, automotive, rail and maritime applications where space, power flexibility and vibration/shock resistance are critical.

Highlights

• Supports Intel 12th/13th Gen Core i3/i5/i7/i9 (marketing references up to 24‑core i9)
• Configurable networking: up to 6x 2.5 GbE LAN with optional dual PoE+
• Wide operating range: -40 to 70°C (config dependent); 12–48 V DC input with automotive ignition sensing

Key features
Ultra‑compact 60 mm height for confined installations. PCIe Gen4 expansion, optional ECC memory, multiple M.2/mPCIe slots and fanless aluminum/steel chassis. Designed for continuous operation with system monitoring, optional TPM and watchdog timer.

Installation & reliability
Tested to MIL‑STD‑810 shock and vibration standards. Flexible mounting: wall, DIN‑rail and vibration‑isolating brackets. Wide DC input and automotive power features enable use in vehicles and transport systems.

Connectivity & I/O
Front I/O

• 4x USB 3.2 Gen 2
• 2x COM (RS-232/422/485)
• GPIO terminal block (DIO, CAN, External Switch)
• 2x 3FF Micro‑SIM slots
• 3.5 mm audio jack, power button, external fan connector

Rear I/O

• Configurable: 2x or 6x 2.5 GbE LAN (2x PoE optional)
• 2x USB 3.2 Gen 2
• 2x DisplayPort
• 5‑pin terminal block power input (12–48 VDC)

Certifications & regulatory

• CE, FCC Part 15
• RoHS 3, REACH
• UKCA, UL 60950‑1 / UL 62368‑1
• MIL‑STD‑810G, EN 50121‑3‑2, EN 55032, EN 55035
• TAA, WEEE, DNV‑CG‑0339

Documentation
Product specification sheet and dimensional drawings available for download (K801 Spec Sheet & Dimensional Drawings).

Technical specifications

• Model: Karbon 801
• Hardware line: Rugged; fanless chassis
• CPU socket: LGA1700 — supports Intel 12th/13th Gen
• CPU options: Intel Core i3/i5/i7/i9 (up to 24 cores in marketing materials)
• Chipset: W680
• Memory: 2x SO‑DIMM DDR4 (up to 64 GB; ECC optional)
• Storage/expansion: M.2 2230 E-key, M.2 2280 M-key (PCIe Gen4 x4), M.2 B-key, mPCIe
• Graphics: Integrated Intel UHD Graphics (CPU dependent); 2x native DisplayPort
• Dimensions: 240 x 60 x 267 mm
• Power input: 12–48 VDC (5‑pin terminal block); automotive ignition sensing
• Operating temperature: -40 to 70°C (depending on CPU/TDP)
• Shock & vibration: IEC 60068 series; MIL‑STD‑810G
• Warranty: 2 Year Limited Warranty
