EDGE PC Karbon 524

GPUboxexpansion

Product overview

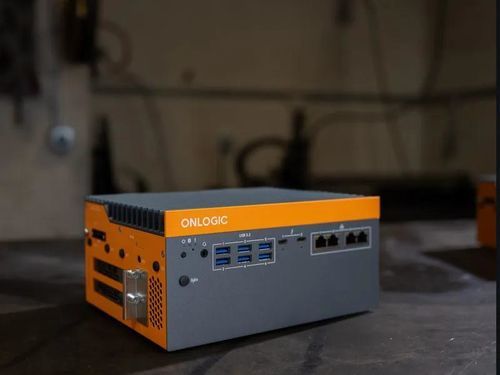

The OnLogic Karbon 524 is a rugged fanless industrial PC engineered for extreme edge environments. It features Intel Core Ultra processors, mechanical PCIe Gen5 x16 (x8 electrical) expansion for discrete GPUs or accelerators, and wide-range DC power support for automotive and mobile deployments.

Key features

• Robust fanless design for operation in harsh conditions and wide temperature ranges
• Intel Core Ultra processing for high compute, graphics and edge AI workloads
• PCIe expansion slot to host discrete GPUs or accelerator cards
• High-speed I/O: USB 3.2 Gen2, Thunderbolt 4, DisplayPort 2.1, multiple 2.5 GbE LAN ports

Performance and storage
The platform supports up to 96 GB DDR5 (5600 MT/s, dual-channel) and multiple M.2 slots for NVMe storage (PCIe Gen4 x4 options). A mechanical PCIe Gen5 x16 (x8 electrical) FHHL slot enables compact discrete GPUs (SFF) or other high-bandwidth cards while M.2 NVMe Gen4 x4 provides high-performance storage.

Design for extreme environments
Passive/hybrid fanless thermal design, vibration and shock resistance (MIL-STD/IEC test references), wide operating temperature range (-40 °C to 70 °C), and flexible mounting (DIN, wall, VESA, rack). Wide input DC power (automotive-capable 12–48 V) with programmable ignition/ignition detection.

Connectivity and I/O

• Front I/O: power button, factory reset switch, 3.5 mm audio, 6x USB 3.2 Gen2 Type-A, 2x Thunderbolt 4 (USB-C), 4x 2.5 GbE LAN
• Rear/configurable I/O: up to 2x DisplayPort 2.1 UHBR20, up to 4x COM (RS-232/422/485) or optional CAN/DIO
• Embedded interfaces: terminal block power input, M.2 B-Key (SIM mapping), antenna holes, grounding lug, remote switch, Fan Hat connector

Extensions and modules

• Expansion: 1x PCIe Gen5 x16 mechanical (x8 electrical) FHHL for GPU or extension cards
• M.2: M.2 2280 M-Key (PCIe Gen4 x4), M.2 2242/60 M-Key, M.2 B-Key (PCIe/USB mappings)
• Optional modules: CAN, DIO, cellular (4G LTE), Wi‑Fi/Bluetooth, AI accelerators (Hailo etc.)

Security and management
Onboard TPM 2.0 (Infineon SLB9672), Secure Boot, support for Intel vPro/AMT remote management depending on CPU, and options for hardware AI accelerators for inference at the edge.

Operating system and software
Software support includes enterprise Linux distributions such as Red Hat and Ubuntu; additional drivers and vendor support available per configuration.

Technical specifications

• Brand: OnLogic
• Model: Karbon 524
• Hardware family: Rugged
• Cooling: Fanless / hybrid passive cooling
• Processor: Intel Core Ultra (Series 1 & 2 depending on SKU)
• Max memory: up to 96 GB DDR5 (5600 MT/s, dual channel)
• Storage: M.2 NVMe support (PCIe Gen4 x4 options)
• PCIe: 1x PCIe Gen5 x16 mechanical (x8 electrical) FHHL
• Displays supported: up to 4
• USB: 6x USB 3.2 Gen2 Type-A (front) + 2x Thunderbolt 4 (USB-C)
• Network: 4x 2.5 GbE
• Power input: wide-range DC (automotive capable, 12–48 V), terminal block
• Operating temperature: -40 °C to 70 °C
• Dimensions: 106 mm x 177 mm x 225 mm
• Weight: ~3.77 kg
• Material: extruded aluminum, steel
• Certifications: CE, FCC, UKCA, WEEE, CISPR/EN 55032-35 family, EN 60601-1-2 (4th ed.) and other industrial/vehicle certifications
