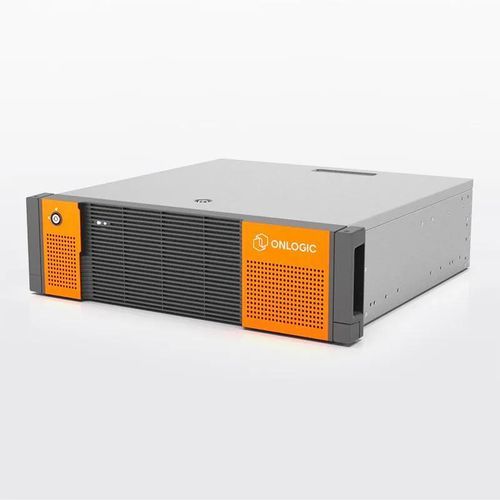

EDGE server Axial AX308

storagegraphics processing unitGPU

Description
The OnLogic Axial AX308 is a 3U edge server platform designed for industrial and infrastructure edge deployments. It supports dual 5th Gen Intel Xeon Scalable processors, multiple NVMe storage options and up to four dual-slot GPUs for accelerated workloads.

Highlights

• Dual 5th Gen Intel Xeon Scalable CPU support
• Up to 4x dual-slot GPUs (model dependent)
• Front-accessible NVMe drive bays (4x) and additional hot-swap options
• Up to 7 PCIe expansion slots and flexible I/O

Overview
The AX308 is engineered for compute- and data-intensive edge applications such as AI inference, machine learning and accelerated processing workloads. The platform provides a balance of GPU expansion, NVMe storage density and remote management features suitable for rack, wall or tower installations.

Flexible deployment & industrial design
The 3U rack form factor supports standard rackmount installation, optional tower stand and alternative mounting. Front hot-swap bays and removable bezels simplify service and drive replacement in constrained environments.

High-speed connectivity & security
Standard network controllers include Intel X710 with 2x 10GbE ports; dedicated management interfaces and security features include TPM 2.0, Secure Boot, intrusion detection and remote management via BMC/IPMI and Redfish.

Storage & expansion
Storage options include front NVMe hot-swap bays, rear SATA hot-swap bays and internal NVMe/U.2 configurations. Multiple PCIe slots support GPUs, additional NICs, RAID controllers and other expansion cards. RAID options depend on controller selection.

Technical specifications

• Manufacturer / Brand: OnLogic
• Model: Axial AX308
• SKU: AX308
• Form factor: Rackmount 3U
• Processor socket: LGA 4677
• Supported CPUs: Dual CPU configurations (5th Gen Intel Xeon Scalable)
• Memory type: DDR5 UDIMM / R-DIMM variants; up to 16 DIMM slots
• GPU expansion: Up to 4x dual-slot GPUs (model dependent)
• PCIe slots: Up to 7 PCIe slots
• Storage: 4x front NVMe hot-swap; 1x rear SATA 2.5" hot-swap; optional front SATA bays (model dependent)
• LAN controller: Intel X710 (2 x 10GbE)
• I/O: Front 2x USB 3.2 Gen1; onboard 2x USB 2.0, 1x GbE management, 1x VGA
• Power input: 100–240 V AC; PSU options vary (example ranges 1000W–2400W)
• Security & management: TPM 2.0, Secure Boot, IPMI v2.0, Redfish, remote BMC management
• Dimensions: 438 x 132 x 421.2 mm (without bezel); dimensions vary with bezels/stand
• Operating temperature: 5°C to 40°C
• Certifications: CE, cUL, TAA compliance where applicable
