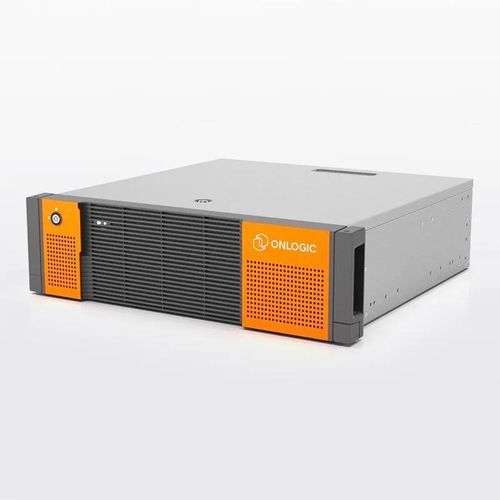

EDGE server Axial AX304

storageEdge AIGPU

Product overview
The OnLogic Axial AX304 is a 3U edge server platform supporting up to 2x Intel® Xeon® Scalable processors (5th Gen), dual-slot GPU configurations and flexible storage and I/O tailored for edge, AI and high-throughput workloads. It supports rack, wall or tower mounting and provides front-access hot-swap NVMe bays plus enterprise remote-management and security features (TPM 2.0, Secure Boot, BMC/RedFish/IPMI).

Highlights

• 3U rack-mount edge server
• Dual Intel Xeon Scalable CPUs (5th Gen)
• Support for dual-slot GPUs and dual-GPU configurations
• 4x front hot-swap NVMe 2.5" bays and additional SATA/NVMe expansion options
• Multiple 10GbE ports (Intel X710) and optional network adapters

Technical specifications

• Brand: OnLogic
• Series: Axial
• Model: AX304
• Form factor: 3U rackmount (also tower/wall)
• CPU: Up to 2x Intel Xeon Scalable (5th Gen), LGA4677
• Memory: DDR5 UDIMM, up to 16 DIMM slots (ECC or non-ECC)
• Storage: 4x front NVMe 2.5" hot-swap; optional front/rear SATA/NVMe expansion
• PCIe: Up to 7 expansion slots
• Network: Intel X710 2x10GbE (configurable); optional additional NICs
• Management & security: TPM 2.0, Secure Boot, IPMI v2.0, RedFish, BMC
• Power input: 100–240 V AC
• Operating temperature: 5 °C to 40 °C
