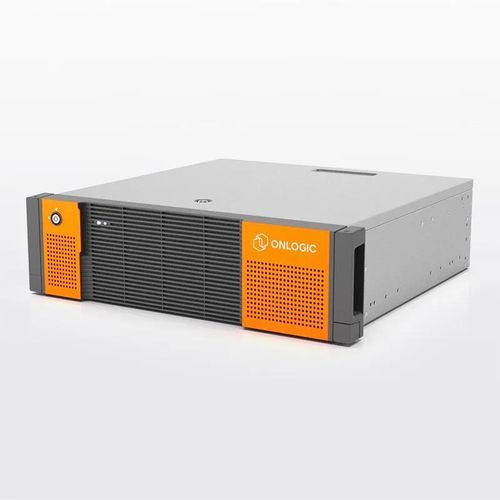

Edge AI server Axial AX305

GPUEDGEstorage

Overview
The OnLogic Axial AX305 is a high‑performance 3U edge server with dual 5th‑Generation Intel® Xeon® Scalable processors. It supports up to seven single‑slot GPUs and multiple front hot‑swap drive configurations to serve AI, machine learning and other compute‑intensive edge applications.

Key features

• Dual 5th Gen Intel Xeon processors
• Support for up to 7x single‑slot GPUs (including NVIDIA® RTX 4000 ADA)
• Front support for up to 8x 2.5" SATA SSDs; alternative front NVMe options

Deployment & industrial design
The compact 3U rackmount chassis also supports wall‑mount and tower configurations. Front hot‑swap bays and a steel chassis provide high local storage density and serviceability for edge environments.

Connectivity & security
Integrated Intel X710‑AT2 provides multiple 10GbE ports; dedicated BMC/IPMI management, TPM 2.0, Secure Boot and intrusion detection options secure data and remote management.

Configuration & expandability
Highly configurable: dual‑CPU choices from the 5th Gen Intel Xeon family, up to 16 DDR5 UDIMM slots (ECC/non‑ECC), multiple M.2/NVMe/SATA storage options and seven PCIe expansion slots for GPUs and other cards.

Technical specifications

• Hardware line: Server
• Cooling: Active
• CPU socket: LGA 4677; CPU generation: 5th Generation Intel Xeon
• LAN controller: Intel X710 (2 x 10GbE)
• PCIe slots: 7; motherboard form factor: ATX
• Memory slots: 16; memory type: DDR5 UDIMM (ECC/non‑ECC); listed max memory: 2000
• Front I/O: 2x USB 3.2 Gen1 Type‑A; onboard I/O: 2x USB2.0, 2x10GbE, 1x GbE management, 1x VGA (BMC)
• Storage: 1x rear 2.5" SATA hot‑swap; up to 4 front hot‑swap NVMe or up to 8 front hot‑swap SATA
• Power: Dual Delta CRPS (1000W/2400W) 80 Plus Titanium; input 100–240 V AC
• Operating temp: 5°C–40°C; certifications: CE, cUL, TAA Compliance
