Edge AI server Axial AX303

RAIDstoragecalculation

Product Overview

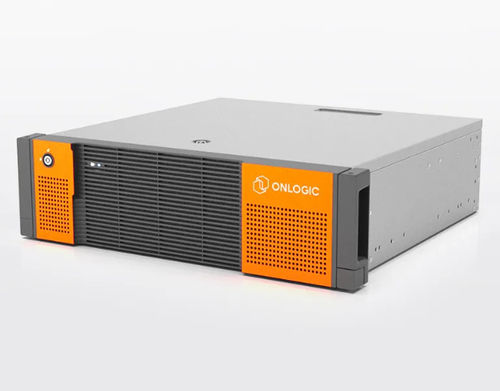

The OnLogic Axial AX303 is a 3U rackmount edge server for compute-dense, bandwidth-intensive workloads. It supports dual Intel Xeon Scalable (5th Gen) processors, multiple PCIe expansion slots and options for dual-slot GPUs, enabling AI/ML and enterprise edge deployments.

Key Features

• 3U rackmount form factor
• Dual Intel Xeon Scalable (5th Generation) processor support
• Support for two dual-slot GPUs and extensive GPU expandability
• High-speed networking: Intel X710 (2x10GbE) standard, X550 option
• Flexible storage: up to 8 front hot-swap 2.5-inch SATA bays, NVMe and M.2 options
• Seven PCIe expansion slots

Use Cases

• Edge computing for AI/ML and data preprocessing
• Industrial and enterprise rack-mounted compute
• High-throughput networking and storage aggregation at the edge

Connectivity & Security

• Front and rear I/O: USB ports, dedicated BMC management LAN, VGA (BMC)
• Remote management: BMC/IPMI v2.0 and RedFish support
• Security features: TPM 2.0 support, Secure Boot, intrusion detection options

Technical Specifications

• Brand: OnLogic
• Model: Axial AX303
• Form factor: 3U rackmount
• Processor socket: LGA 4677
• Processor family: Intel Xeon Scalable (5th Gen)
• Memory: DDR5 UDIMM/RDIMM options, up to system maximum per spec
• Network controller: Intel X710 (2x10GbE) (X550-T2 optional)
• PCIe slots: 7
• Storage options: up to 8x front 2.5-inch SATA hot-swap bays, NVMe and M.2 support
• RAID: optional RAID adapters (RAID 0/1/5/10)
• Power: AC input 100–240 V, PSU options up to 2400 W
• Dimensions: various configurations (rack/tower/security bezel) — see product spec
• Operating temperature: 5°C to 40°C
• Certifications: CE, cUL, TAA compliance
