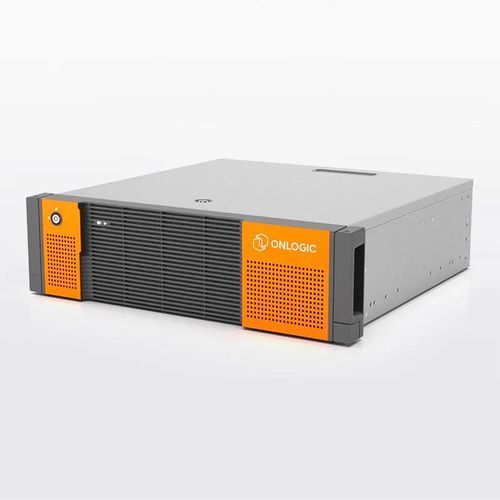

Edge AI server Axial AX302

RAIDEDGEGPU

Description
The Axial AX302 is an edge server in a 3U rack form factor designed for compute- and I/O-dense edge installations. It supports a single 5th Generation Intel® Xeon® Scalable processor and flexible expansion to host accelerators, additional network interfaces and high-density NVMe storage.

Highlights

• Single-socket 5th Gen Intel Xeon Scalable support
• Up to 2x dual-slot PCIe adapters plus 1x additional network adapter
• 4x front-access 2.5" NVMe SSD bays (hot-swap)

Overview
The AX302 delivers a compact 3U profile for rack, wall or tower deployments, balancing compute, GPU/accelerator expansion and high-speed storage for edge workloads such as AI/ML inference, real-time analytics and network appliances.

Flexible deployment & industrial design
Multiple mounting options and a steel chassis allow installation in constrained or industrial edge sites. Configurations include security bezels, handles and a tower stand variant for non-rack environments.

High-speed connectivity & robust security
Integrated networking includes an Intel X710 controller (2 x 10GbE) with options for additional NICs. Management and security features include BMC/IPMI, RedFish support, TPM 2.0, Secure Boot and intrusion detection to meet enterprise edge requirements.

Expansion & storage
The platform offers seven PCIe slots, support for GPU expansion, multiple front and rear hot-swap drive options (NVMe and SATA) and motherboard RAID support (RAID 0/1, 5, 10) to adapt to storage-performance or redundancy needs.

Technical specifications

• Hardware line: Server
• Form factor: 3U rackmount
• Processor socket: LGA 4677 (single)
• Processor family: 5th Generation Intel Xeon Scalable
• LAN controller: Intel X710 (2 x 10GbE) (X550-T2 optional)
• PCIe slots: 7
• Motherboard form factor: ATX
• Memory slots: 16 (DDR5 UDIMM, ECC or non-ECC)
• Max memory (indicated): 2000
• Front I/O: 2x USB 3.2 Gen1 Type-A
• Onboard I/O: 2x USB 2.0 Type-A; 2x 10GbE Intel X710-AT2; 1x GbE dedicated management (BMC/IPMI); 1x VGA (BMC video)
• Storage options: 4x front hot-swap NVMe 2.5"; 8x front hot-swap SATA; 1x rear SATA 2.5" hot-swap
• Motherboard RAID: RAID 0/1, 5, 10 (depending on configuration)
• Cooling: Active cooling
• Dimensions: 438 x 132 x 421.2 mm (without security bezel) — larger with bezel/handles or tower stand
• Chassis material: Steel
• Input voltage: 100–240 V AC
• Input power (indicative): 1000–2400 W (depending on PSU configuration)
• Operating temperature: 5°C to 40°C
• Certifications: CE, cUL, TAA Compliance
• Additional features: GPU expansion capability; Secure Boot; Remote management (BMC/IPMI/RedFish); TPM 2.0; intrusion detection
