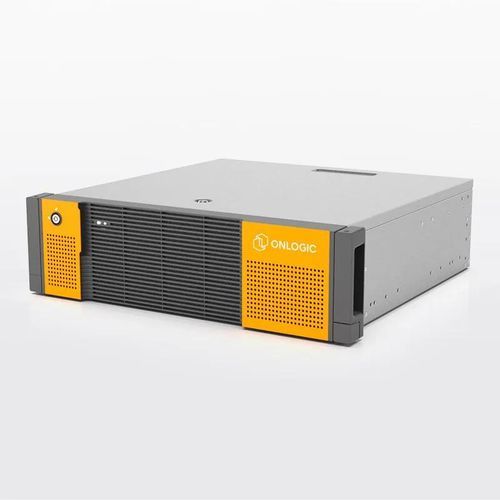

Edge AI server Axial AX306

GPUgraphics processing unitstorage

Overview
The Axial AX306 is a 3U edge server engineered for GPU‑dense and storage‑intensive workloads. It supports dual 5th Gen Intel® Xeon® Scalable processors and up to seven single‑slot GPUs, delivering compute and acceleration capacity for AI/ML inference and other compute‑heavy edge applications.

Highlights

• Dual 5th Gen Intel Xeon Scalable processors
• Support for up to 7x single‑slot GPUs (including NVIDIA® RTX 4000 ADA)
• 4x front hot‑swap 2.5‑inch NVMe SSD bays

Deployment & Industrial Design
Compact 3U rackmount chassis made of steel with options for rack, wall or tower mounting. Front hotswap drive cage accepts up to four 2.5‑inch NVMe SSDs for high‑performance local storage while preserving GPU density and serviceability.

Connectivity & Security
Integrated high‑speed networking via Intel X710 (2 x 10GbE) and multiple onboard I/O for sensors and peripherals. Platform security and manageability include TPM 2.0, Secure Boot, intrusion detection and remote management (BMC/IPMI, RedFish) to support secure, remote operations.

Technical specifications

• Hardware line: Server
• Cooling type: Actively cooled
• Processor socket: LGA 4677
• Processor generation: 5th Generation (Intel Xeon Scalable)
• CPU configuration: Dual 5th Gen Intel Xeon Scalable processors
• GPU support: Up to 7x single‑slot GPUs (including NVIDIA® RTX 4000 ADA)
• LAN controller: 1x Intel X710 controller (2 x 10GbE ports)
• Motherboard expansion slots (PCIe): 7
• Motherboard form factor: ATX
• Memory slots: 16
• Memory type: DDR5 UDIMM (non‑ECC or ECC)
• Memory capacity (referenced): 2000
• Memory channels: Multi Channel
• Front I/O: 2x USB 3.2 Gen 1 Type A
• Onboard I/O: 2x USB 2.0 Type A; 2x 10GbE (Intel X710‑AT2); 1x GbE dedicated management (BMC/IPMI); 1x VGA (BMC video output)
• Storage options: 1x Rear SATA 2.5" Hot Swap; 4x Front Hotswap NVMe; 8x Front Hotswap SATA
• Motherboard RAID support: RAID 5, RAID 10, RAID 0/1
• System monitoring: CPU voltage monitoring; IPMI v2.0; RedFish; Smart fan control
• PCIe count: 7
• Dimensions: 438 x 132 x 421.2 mm (without Security Bezel); 482.6 x 132 x 455 mm (with Security Bezel & Handles); 132 x 448.2 x 553.6 mm (with Tower Stand and bezels)
• Case type: Rackmount
• Case material: Steel
• Mounting options: Rackmount, wall‑mount, tower stand
• Input voltage: 100–240 V AC
• Input power (indicated): 1000–2400 W
• Regulatory certifications: CE; cUL; TAA Compliance
• Operating temperature: 5 °C to 40 °C
• Manufacturer expected lifecycle: 5 years
• Additional features: GPU expansion support; Secure Boot; Remote management (BMC/IPMI/RedFish); TPM 2.0; intrusion detection
