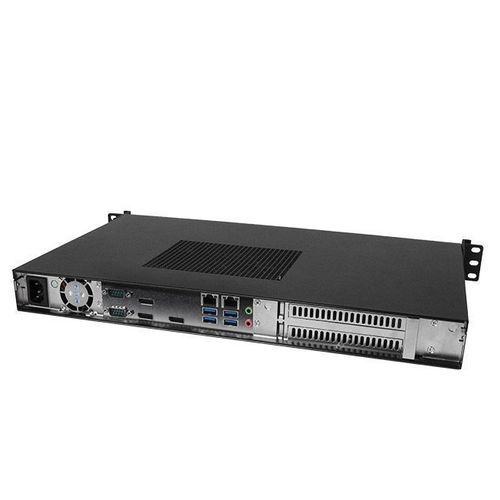

Server computer MK100B-53

Intel® Skylake ProcessorVGADisplayPort

Coffee Lake performance in the 1U form factor makes the MK100B-53 ready for the edge with mini server capabilities. Up to Core i7 Dual COM, Dual LAN, Dual Independent Displays PCIe x16 Expansion Hardware Line - Rackmount Cooling Type - Actively Cooled Processor Socket - LGA1151 Processor Generation - Coffee Lake Processor Cores - 2 4 6 Chipset - Intel H310 Graphics/GPU - Intel UHD Graphics 610 Intel UHD Graphics 630 Memory Type - DDR4 SO-DIMM (non-ECC) Memory Capacity - 32 GB Memory Speed - 2666 MHz Memory Slot Count - 2.000000 Number of Displays Supported - 2 Rear I/O - 3 DisplayPort Connectors 4 USB 3.2 Gen 1 ports 2 COM ports 2 Gb LAN ports 2 Audio jacks (mic in, line-out) Front I/O - 2 USB 2.0 ports Power button Expansion Options - 1x M.2 2230 E-key 1x mPCIe (full/half-size) 1x PCIe x16 slot Storage Options - 2.5" HDD/SSD 1x M.2 2242/60/80 M-key (SATA) LAN Controller - Intel I210 GbE Intel I219-V Included Power Supply - 250 W switching power supply
