Storage server Axial AX307

EDGEgraphics processing unitGPU

Overview

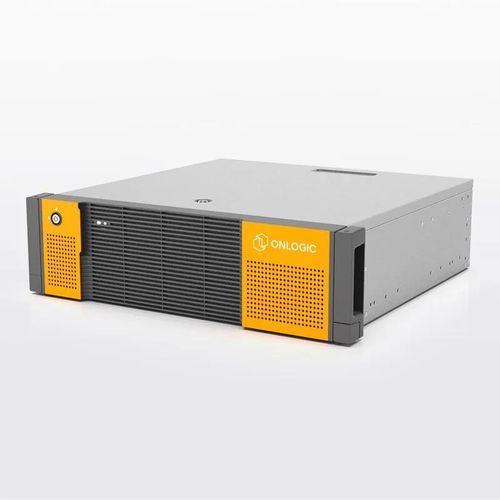

The OnLogic Axial AX307 is a 3U rackmount edge server supporting dual Intel® Xeon® Scalable (5th Gen) processors and configurable GPU, storage and I/O options for compute‑dense edge deployments.

Highlights

• Dual CPU: supports 2 x Intel® Xeon® Scalable (5th Generation)
• GPU support: up to 4 dual‑slot GPUs (supports NVIDIA® A6000 ADA on compatible SKUs)
• High‑density storage: up to 8 front 2.5" SATA hot‑swap bays plus NVMe options

Flexible deployment & industrial design
Compact 3U rack form factor with rack, wall and tower mounting options. Front‑accessible drive bays and serviceable design suit edge locations and constrained environments.

High‑Speed connectivity & security

• Integrated networking: Intel X710 controller (2 x 10GbE) and dedicated management GbE
• Management & diagnostics: BMC/IPMI with VGA (BMC video output)
• Security: TPM 2.0, Secure Boot and remote management capabilities

Configurable components

• Memory: DDR5 UDIMM / R‑DIMM options, up to 16 DIMM slots (varies by configuration)
• Storage: M.2, front NVMe hot‑swap bays, front/rear 2.5" SATA hot‑swap, RAID adapter options
• Expansion & power: up to 7 PCIe slots; configurable PSUs (examples: 1000 W–2400 W CRPS options)

Technical specifications

• Brand: OnLogic
• Model: Axial AX307 (SKU: AX307)
• Form factor: 3U rackmount
• CPU socket: LGA 4677; supports Intel Xeon Scalable (5th Gen)
• GPU: support for up to 4 dual‑slot GPUs (model‑dependent)
• Memory slots: up to 16; DDR5 UDIMM / R‑DIMM support
• Storage options: up to 8 front 2.5" SATA hot‑swap; 4 front NVMe; rear SATA 2.5" hot‑swap; M.2 options
• Network: Intel X710 (2 x 10GbE); 1 x GbE dedicated management
• PCIe slots: 7
• Chassis: steel; example dimensions: 438 x 132 x 421.2 mm (varies with bezel/handles/stand)
• Power: configurable (e.g. 1000 W–2400 W options)
• Operating temperature: 5 °C to 40 °C
• Certifications: CE, cUL, TAA compliance
