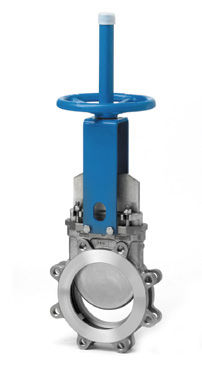

Knife gate valve ET with handwheelshut-offfor wastewater
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- with handwheel
- Media
- for wastewater
- Other characteristics
- unidirectional
- DN
Max.: 900 mm
(35.433 in)Min.: 50 mm
(1.969 in)- Pressure
100 psi, 150 psi
Description
The ET model knife gate is a uni-directional lug type valve designed according to MSS-SP-81 and TAPPI-TIS 405 for industrial service applications.
The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:
Pulp and Paper
Power plants
Mining
Chemical plants
Wastewater
Food and Beverage
etc.
Sizes:
DN 2"/50 to DN 36"/900 (larger diameters on request)
Working pressure:
DN 2"/50 to 24"/600: 150 psi (10 kg/cm²)
DN 30"/750: 100 psi (7 kg/cm²)
DN 36"/900: 100 psi (7 kg/cm²)
Standard flange connection:
EN1092 PN10 and ANSI B16.5 (class 150)
