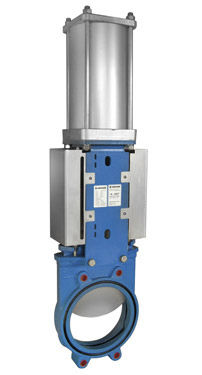

Knife gate valve EB electricshut-offfor wastewater
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- electric
- Media
- for wastewater
- Other characteristics
- bidirectional
- DN
Max.: 1,200 mm
(47.244 in)Min.: 50 mm
(1.969 in)- Pressure
10 bar
(145 psi)
Description
The EB model knife gate is a bi-directional valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:
Wastewater treatment plants
Chemical plants
Food and Beverage
etc.
Sizes:
DN 50 to DN 1200 (larger diameters on request)
Working pressure:
DN 50 to DN 250: 10 kg/cm²
DN 300 to DN 400: 6 kg/cm²
DN 450: 5 kg/cm²
DN 500 to DN 600: 4 kg/cm²
DN 700 to DN 1200: 2 kg/cm²
Standard flange connection:
EN1092 PN10
Face to face dimensions acc. EN558-1 serie20 (DIN3202 K1) up to DN 500
Catalogs
EB
12 Pages
