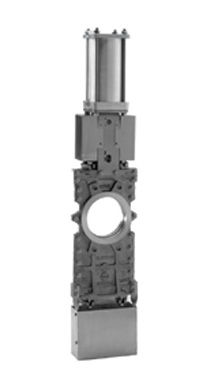

Knife gate valve DN 50 - 1 000, PN 25 | TL electricshut-offfor sludge
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- electric
- Media
- for sludge
- DN
Max.: 1,000 mm
(39.37 in)Min.: 50 mm
(1.969 in)- Pressure
6 bar, 16 bar, 25 bar
(87 psi, 232.1 psi, 362.6 psi)
Description
The TL model knife gate is a through conduit wafer valve designed for media with high consistency. The double seat design assures a non-clogging shut off on either normal or reverse flow. The valve is used in a wide range of demanding applications in industries such as:
Pulp & Paper
Wastewater Treatment Plants
Power Plants
Chemical plants
Etc.
Sizes:
DN 50 to DN 1000 (larger diameters on request)
Working pressure:
DN 50 to DN 125: 10 (kg/cm²)
DN 150 to DN 250: 8 (kg/cm²)
DN 300 to DN 400: 6 (kg/cm²)
DN 450: 5 (kg/cm²)
DN 500 to DN 600: 4 (kg/cm²)
DN 700 to DN 1000: 2 (kg/cm²)
Standard flange connection:
EN1092 PN10 and ANSI B16.5 (class 150)
Note:
other flange connections are available on request such as:
EN1092 PN6/16/25
BS D and E
ANSI 125
