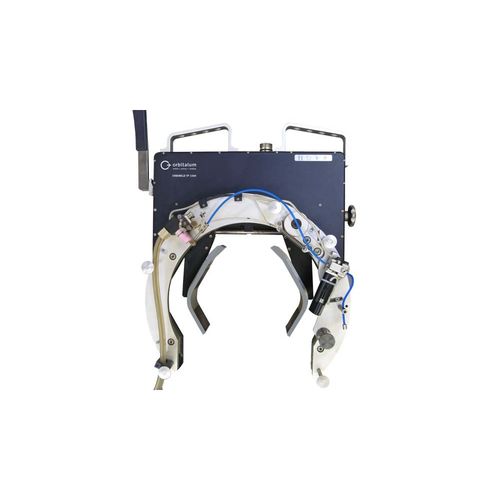

ORBIWELD TP 1000 AVC/OSC: Orbital welding gun
An extremely compact design has been achieved thanks to the drive motor that is fully integrated into the housing. The drive concept has made the well-known large and costly drives associated with conventional weld heads unnecessary.
For field applications the compact wire feeder on the weld head is more comfortable than a separate, heavy wire feeder.
Scope of application ORBIWELD TP 1000 AVC/OSC
Tube OD [mm] 120,00 - 275,00 [inch] 4.724 - 10.827
Wall thickness (depending on material) [mm] 1,00 - 15,00 [inch] 0.039 - 0.591
