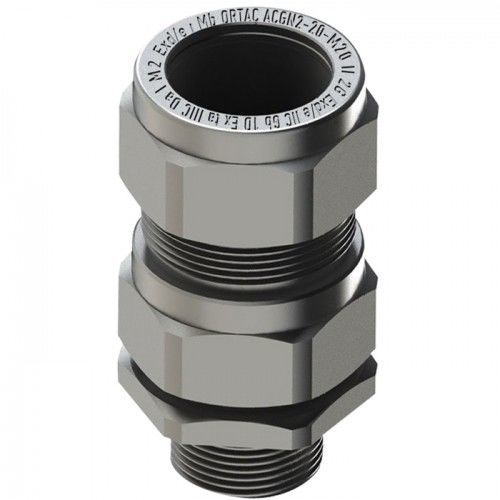

Aluminium cable gland Colima series

brassnickel-plated brassstainless steel

Product
Colima Series Armoured Ex Proof Cable Glands (ACG) single compression variant.

Key product information
Type : ACG (Armoured cable gland)
Protection code : II 2GD Ex d IIC Gb / I M2 Ex d I Mb Ex tb IIIC Db
Certificate : IEP 14 ATEX 0215U
Material : MS58 Brass with or without nickel plated, Stainless steel AISI303 / 316L / Aluminium
Standards : EN 60079-0:2012, EN 60079-1:2007, EN 60079-31:2009, BS6121
Protection class : IP66 / IP68
Temperature (by sealing material) : -30 °C to +120 °C (NBR); -40 °C to +100 °C (NEOPRENE); -60 °C to +180 °C (SILICONE); -30 °C to +100 °C (TPE/V)
Application area : ZONE1, ZONE2, ZONE21, ZONE22; Gas Group IIA, IIB, IIC
Cable type : SWA (Single wire armour) (STA & other cables optional)

Technical Data (size table)
Product Size - Product Code - Standard AG - AG NPT - AG - A Max - B Min / Max - Ø d (Armour) Min / Max - GL min. mm - Wrench mm
16 - ACGXX/16/X - M16x1,5 - 1/2" - PG9 - A Max 8,6 - B Min 6,1 / Max 13,2 - Ø d Min 0,8 / Max 1,0 - GL min. 15 - Wrench 24
20ss - ACGXX/20ss/X - M20ssx1,5 - 1/2" - PG11ss - A Max 8,6 - B Min 6,1 / Max 13,2 - Ø d Min 0,8 / Max 1,0 - GL min. 15 - Wrench 24
20s - ACGXX/20s/X - M20sx1,5 - 1/2" - PG11s - A Max 11,6 - B Min 9,5 / Max 15,9 - Ø d Min 0,8 / Max 1,25 - GL min. 15 - Wrench 24
20 - ACGXX/20/X - M20x1,5 - 1/2" - PG13,5 - A Max 13,9 - B Min 12,5 / Max 20,9 - Ø d Min 0,8 / Max 1,25 - GL min. 15 - Wrench 30
25s - ACGXX/25s/X - M25sx1,5 - 3/4" - PG21s - A Max 19,9 - B Min 14 / Max 22 - Ø d Min 1,25 / Max 1,6 - GL min. 15 - Wrench 38
25 - ACGXX/25/X - M25x1,5 - 3/4" - PG21 - A Max 19,9 - B Min 18,2 / Max 26,2 - Ø d Min 1,25 / Max 1,6 - GL min. 15 - Wrench 38
32 - ACGXX/32/X - M32x1,5 - 1" - PG29 - A Max 26,2 - B Min 23,7 / Max 33,9 - Ø d Min 1,6 / Max 2 - GL min. 15 - Wrench 45
40 - ACGXX/40/X - M40x1,5 - 11/4" - PG36s - A Max 33,9 - B Min 27,9 / Max 40,4 - Ø d Min 1,6 / Max 2 - GL min. 15 - Wrench 55
50s - ACGXX/50s/X - M50sx1,5 - 11/2" - PG36 - A Max 38,1 - B Min 35,2 / Max 46,7 - Ø d Min 2 / Max 2,5 - GL min. 15 - Wrench 60
50 - ACGXX/50/X - M50x1,5 - 2" - PG42 - A Max 44 - B Min 40,4 / Max 53,1 - Ø d Min 2 / Max 2,5 - GL min. 15 - Wrench 70
63s - ACGXX/63s/X - M63sx1,5 - 2" - PG48 - A Max 49,9 - B Min 45,6 / Max 59,4 - Ø d Min 2 / Max 2,5 - GL min. 15 - Wrench 75
63 - ACGXX/63/X - M63x1,5 - 21/2" - PG - A Max 55,9 - B Min 54,6 / Max 65,9 - Ø d Min 2 / Max 2,5 - GL min. 15 - Wrench 80
75s - ACGXX/75s/X - M75sx1,5 - 21/2" - PG - A Max 61,9 - B Min 59 / Max 72,1 - Ø d Min 2 / Max 2,5 - GL min. 15 - Wrench 90
75 - ACGXX/75/X - M75x1,5 - 3" - PG - A Max 67,9 - B Min 66,7 / Max 78,5 - Ø d Min 2,5 / Max 3 - GL min. 15 - Wrench 100
90 - ACGXX/90/X - M90x2,0 - 3" - PG - A Max 79,9 - B Min 76,2 / Max 90,4 - Ø d Min 3 / Max 3,5 - GL min. 15 - Wrench 115
100 - ACGXX/100/X - M100x2,0 - - - A Max 90 - B Min 86,1 / Max 101,5 - Ø d Min 3,15 / Max 4 - GL min. 15 - Wrench 123
115 - ACGXX/115/X - M115x2,0 - - - A Max 97,9 - B Min 101,5 / Max 110,3 - Ø d Min 3,15 / Max 4 - GL min. 15 - Wrench 133
130 - ACGXX/130/X - M130x2,0 - - - A Max 114,9 - B Min 114,2 / Max 123,3 - Ø d Min 3,15 / Max 4 - GL min. 15 - Wrench 146

Characteristics / technical specifications

• Series: Colima (ACG) armoured Ex-proof cable glands
• Protection code: II 2GD Ex d IIC Gb / I M2 Ex d I Mb Ex tb IIIC Db
• Certifications: IEP 14 ATEX 0215U (ATEX certificate available)
• Materials: MS58 Brass (nickel plated optional), Stainless steel AISI303 / 316L, Aluminium
• Standards compliance: EN 60079-0:2012, EN 60079-1:2007, EN 60079-31:2009, BS6121
• Ingress protection: IP66 / IP68
• Sealing material temperature ranges: NBR, Neoprene, Silicone, TPE/V (ranges detailed above)
• Application zones: Zone 1 / Zone 2 / Zone 21 / Zone 22; Gas Groups IIA, IIB, IIC
• Cable compatibility: SWA (single wire armour), STA and other cable types optional
• Available product sizes and part codes: see complete technical data table above (sizes from 16 up to 130 with corresponding codes and dimensions)
