Aluminium cable gland DCG

nickel-plated brassstainless steelbrass

Product title

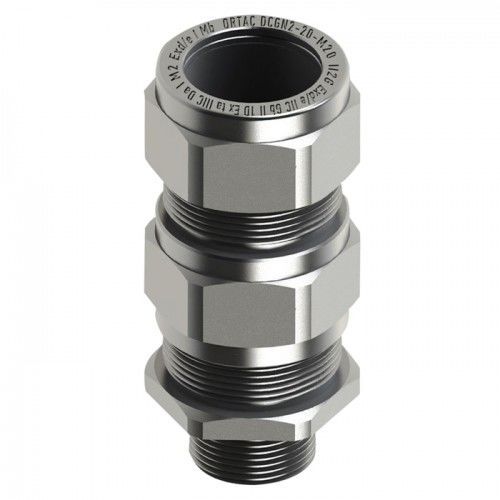

Armoured Ex-proof Cable Gland DCG (Double Compression) – ETNA Series

Product details
Type: DCG (Double compression gland)
Protection code: I M2 Ex db I Mb II 2G Ex db IIC Gb II 2D Ex tb IIIC Db
Certificate: IEP 14 ATEX 0216X
Material: MS58 Brass with or without nickel plating, stainless steel AISI303 / AISI316L, Aluminium
Standards: EN 60079-0:2012, EN 60079-1:2007, EN 60079-31:2009
Protection class: IP66 / IP68
Temperature ranges: NBR -30 °C to +120 °C; NEOPRENE -40 °C to +100 °C; SILICONE -60 °C to +180 °C; TPE/V -30 °C to +100 °C
Application area: ZONE1, ZONE2, ZONE21, ZONE22; Gas Groups IIA, IIB, IIC
Cable type: SWA (Single wire armour); STA and other cables optional

Technical data table
Product Size | Product Code | Standard AG | AG NPT | AG | A Min Max | B Min Max | Ø d (Armour) Min Max | GL min. mm | Wrench mm
16 | DCGXX/16/X | M16x1,5 | 1/2\" | PG9 | 3,1 | 8,6 | 6,1 | 13,2 | 0,8 | 1 | 15 | 24
20ss | DCGXX/20ss/X | M20ssx1,5 | 1/2\" | PG11ss | 3,1 | 8,6 | 6,1 | 13,2 | 0,8 | 1 | 15 | 24
20s | DCGXX/20s/X | M20sx1,5 | 1/2\" | PG11s | 6,1 | 11,6 | 9,5 | 15,9 | 0,8 | 1,25 | 15 | 24
20 | DCGXX/20/X | M20x1,5 | 1/2\" | PG13,5 | 6,5 | 13,9 | 12,5 | 20,9 | 0,8 | 1,25 | 15 | 30
25s | DCGXX/25s/X | M25sx1,5 | 3/4\" | PG21s | 11,1 | 19,9 | 14 | 22 | 1,25 | 1,6 | 15 | 38
25 | DCGXX/25/X | M25x1,5 | 3/4\" | PG21 | 11,1 | 19,9 | 18,2 | 26,2 | 1,25 | 1,6 | 15 | 38
32 | DCGXX/32/X | M32x1,5 | 1\" | PG29 | 18,2 | 26,2 | 23,7 | 33,9 | 1,6 | 2 | 15 | 45
40 | DCGXX/40/X | M40x1,5 | 11/4\" | PG36s | 23,7 | 33,9 | 27,9 | 40,4 | 1,6 | 2 | 15 | 55
50s | DCGXX/50s/X | M50sx1,5 | 11/2\" | PG36 | 29,5 | 38,1 | 35,2 | 46,7 | 2 | 2,5 | 15 | 60
50 | DCGXX/50/X | M50x1,5 | 2\" | PG42 | 35,6 | 44 | 40,4 | 53,1 | 2 | 2,5 | 15 | 70
63s | DCGXX/63s/X | M63sx1,5 | 2\" | PG48 | 40,1 | 49,9 | 45,6 | 59,4 | 2 | 2,5 | 15 | 75
63 | DCGXX/63/X | M63x1,5 | 21/2\" | - | 47,2 | 55,9 | 54,6 | 65,9 | 2 | 2,5 | 15 | 80
75s | DCGXX/75s/X | M75sx1,5 | 21/2\" | - | 52,8 | 61,9 | 59 | 72,1 | 2 | 2,5 | 15 | 90
75 | DCGXX/75/X | M75x1,5 | 3\" | - | 59,1 | 67,9 | 66,7 | 78,5 | 2,5 | 3 | 15 | 100
90 | DCGXX/90/X | M90x2 | 3\" | - | 66,6 | 79,9 | 76,2 | 90,4 | 3 | 3,5 | 15 | 115
100 | DCGXX/100/X | M100x2 | - | - | 76 | 90 | 86,1 | 101,5 | 3,15 | 4 | 15 | 123
115 | DCGXX/115/X | M115x2 | - | - | 86 | 97,9 | 101,5 | 110,3 | 3,15 | 4 | 15 | 133
130 | DCGXX/130/X | M130x2 | - | - | 97 | 114,9 | 114,2 | 123,3 | 3,15 | 4 | 15 | 146

Technical specifications

• Type: DCG (Double compression gland)
• Protection code: I M2 Ex db I Mb II 2G Ex db IIC Gb II 2D Ex tb IIIC Db
• Certificate: IEP 14 ATEX 0216X
• Material options: MS58 Brass (with or without nickel plating), AISI303 stainless steel, AISI316L stainless steel, Aluminium
• Standards: EN 60079-0:2012; EN 60079-1:2007; EN 60079-31:2009
• Protection class: IP66 / IP68
• Temperature ranges by sealing material: NBR -30 °C to +120 °C; NEOPRENE -40 °C to +100 °C; SILICONE -60 °C to +180 °C; TPE/V -30 °C to +100 °C
• Application zones: ZONE1, ZONE2, ZONE21, ZONE22; Gas Groups IIA, IIB, IIC
• Cable compatibility: SWA (Single wire armour); STA and other cables optional
• Available sizes and corresponding threads, armour and dimensions: see technical data table above
