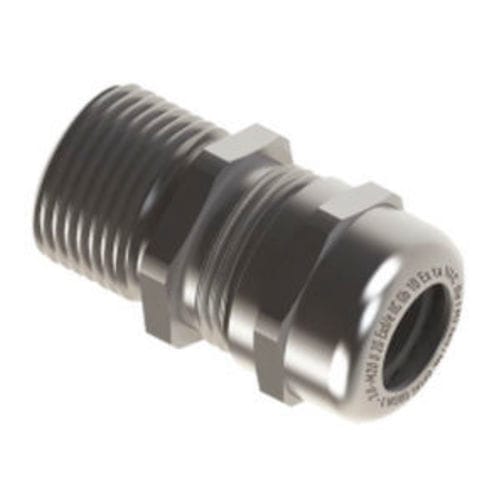

Brass cable gland UAGT seriesnickel-plated brassaluminiumstainless steel
Add to favorites
Compare this product
Characteristics
- Material
- nickel-plated brass, brass, stainless steel, aluminium
- Protection level
- explosion-proof, EMC-shielded, IP68, armored
- Other characteristics
- metric, for armored cables, threaded
- Cable diameter
Min.: 4 mm
(0.16 in)Max.: 63 mm
(2.48 in)- Thread diameter
Min.: 16 mm
(0.63 in)Max.: 80 mm
(3.15 in)- Clamping range
Min.: 4 mm
(0.2 in)Max.: 63 mm
(2.5 in)- Operating temperature
Min.: -60 °C
(-76 °F)Max.: 180 °C
(356 °F)
Description
Product
Type: UAGT screened EMC Ex gland suitable for armoured cables
Protection Code: I M2 Ex db I Mb / I M2 Ex eb I Mb; II 2G Ex db IIC Gb / II 2G Ex eb II Gb; II 2D Ex tb IIIC Db
Certificate: IEP 14 ATEX 0217X
Material: MS58 brass (optionally nickel plated), Stainless steel AISI303 / AISI316L, Aluminium
Earthing cone: MS58 brass (optionally nickel plated)
Locking ring: Stainless steel AISI303 / AISI316L
Standards: EN 60079-0:2012; EN 60079-7:2007; EN 60079-1:2007; EN 60079-31:2009
Ingress protection: IP68
Temperature ranges (by seal material): NBR: -30 °C to +120 °C; Neoprene: -40 °C to +100 °C; Silicone: -60 °C to +180 °C; TPE/V: -30 °C to +100 °C
Application area: ZONE1, ZONE2, ZONE21, ZONE22; Gas Groups IIA, IIB, IIC
Cable compatibility: Screened lines & screened cables; suitable for armoured cable types
Technical data (exd variants) — key product size rows
16 — UAGTXX/16/X — M16x1,5 — 3/8" — GL min. 15 — Clamping range mm: 4-8 — Wrench B: 18 — Wrench C: 17
20 — UAGTXX/20/X — M20x1,5 — 1/2" — GL min. 15 — Clamping range mm: 6-12 — Wrench B: 22 — Wrench C: 22
25s — UAGTXX/25s/X — M25x1,5 — 3/4" — GL min. 15 — Clamping range mm: 10-14 — Wrench B: 27 — Wrench C: 24
25 — UAGTXX/25/X — M25x1,5 — 3/4" — GL min. 15 — Clamping range mm: 13-18 — Wrench B: 30 — Wrench C: 30
32 — UAGTXX/32/X — M32x1,5 — 1" — GL min. 15 — Clamping range mm: 13-18 — Wrench B: 34 — Wrench C: 30
32 — UAGTXX/40/X — M32x1,5 — 1" — GL min. 15 — Clamping range mm: 18-25 — Wrench B: 40 — Wrench C: 40
40 — UAGTXX/40/X — M40x1,5 — 11/4" — GL min. 15 — Clamping range mm: 18-25 — Wrench B: 43 — Wrench C: 40
40 — UAGTXX/50/X — M40x1,5 — 11/4" — GL min. 15 — Clamping range mm: 22-32 — Wrench B: 50 — Wrench C: 50
50 — UAGTXX/50/X — M50x1,5 — 11/2" — GL min. 15 — Clamping range mm: 22-32 — Wrench B: 55 — Wrench C: 50
50 — UAGTXX/42/X — M50x1,5 — 11/2" — GL min. 15 — Clamping range mm: 30-38 — Wrench B: 60 — Wrench C: 57
63s — UAGTXX/63s/X — M63x1,5 — 2" — GL min. 15 — Clamping range mm: 33-44 — Wrench B: 70 — Wrench C: 64
63 — UAGTXX/63/X — M63x1,5 — 2" — GL min. 15 — Clamping range mm: 45-50 — Wrench B: 70 — Wrench C: 75
72 — UAGTXX/80/X — M72x1,5 — 21/2" — GL min. 20 — Clamping range mm: 50-63 — Wrench B: 90 — Wrench C: 90
75 — UAGTXX/72/X — M75x1,5 — 21/2" — GL min. 20 — Clamping range mm: 45-55 — Wrench B: 85 — Wrench C: 75
75 — UAGTXX/75/X — M75x1,5 — 21/2" — GL min. 20 — Clamping range mm: 50-63 — Wrench B: 90 — Wrench C: 90
80 — UAGTXX/80/X — M80x2,0 — 3" — GL min. 20 — Clamping range mm: 50-63 — Wrench B: 90 — Wrench C: 90
Technical data (exe variants) — sample rows
16 — EUAGTXX/16/X — M16x1,5 — 3/8" — GL min. 7 — Clamping range mm: 4-8 — Wrench B: 18 — Wrench C: 17
20 — EUAGTXX/20/X — M20x1,5 — 1/2" — GL min. 8 — Clamping range mm: 6-12 — Wrench B: 22 — Wrench C: 22
25s — EUAGTXX/25s/X — M25x1,5 — 3/4" — GL min. 8 — Clamping range mm: 10-14 — Wrench B: 27 — Wrench C: 24
25 — EUAGTXX/25/X — M25x1,5 — 3/4" — GL min. 8 — Clamping range mm: 13-18 — Wrench B: 30 — Wrench C: 30
32 — EUAGTXX/32/X — M32x1,5 — 1" — GL min. 9 — Clamping range mm: 13-18 — Wrench B: 34 — Wrench C: 30
32 — EUAGTXX/40/X — M32x1,5 — 1" — GL min. 9 — Clamping range mm: 18-25 — Wrench B: 40 — Wrench C: 40
40 — EUAGTXX/40/X — M40x1,5 — 11/4" — GL min. 9 — Clamping range mm: 18-25 — Wrench B: 43 — Wrench C: 40
Additional information
Product family: Ex-proof EMC Type Cable Glands - UAGT Series
Technical characteristics / specifications
Type: UAGT screened EMC Ex gland suitable for armoured cables
Protection Code: I M2 Ex db I Mb / I M2 Ex eb I Mb; II 2G Ex db IIC Gb / II 2G Ex eb II Gb; II 2D Ex tb IIIC Db
Certificate: IEP 14 ATEX 0217X
Material: MS58 brass (optionally nickel plated), Stainless steel AISI303 / AISI316L, Aluminium
Earthing cone: MS58 brass (optionally nickel plated)
Locking ring: Stainless steel AISI303 / AISI316L
Standards: EN 60079-0:2012; EN 60079-7:2007; EN 60079-1:2007; EN 60079-31:2009
Ingress protection: IP68
Temperature ranges (by seal material): NBR: -30 °C to +120 °C; Neoprene: -40 °C to +100 °C; Silicone: -60 °C to +180 °C; TPE/V: -30 °C to +100 °C
Application area: ZONE1, ZONE2, ZONE21, ZONE22; Gas Groups IIA, IIB, IIC
Cable compatibility: Screened lines & screened cables; suitable for armoured cable types
Technical data (exd variants) — key product size rows
16 — UAGTXX/16/X — M16x1,5 — 3/8" — GL min. 15 — Clamping range mm: 4-8 — Wrench B: 18 — Wrench C: 17
20 — UAGTXX/20/X — M20x1,5 — 1/2" — GL min. 15 — Clamping range mm: 6-12 — Wrench B: 22 — Wrench C: 22
25s — UAGTXX/25s/X — M25x1,5 — 3/4" — GL min. 15 — Clamping range mm: 10-14 — Wrench B: 27 — Wrench C: 24
25 — UAGTXX/25/X — M25x1,5 — 3/4" — GL min. 15 — Clamping range mm: 13-18 — Wrench B: 30 — Wrench C: 30
32 — UAGTXX/32/X — M32x1,5 — 1" — GL min. 15 — Clamping range mm: 13-18 — Wrench B: 34 — Wrench C: 30
32 — UAGTXX/40/X — M32x1,5 — 1" — GL min. 15 — Clamping range mm: 18-25 — Wrench B: 40 — Wrench C: 40
40 — UAGTXX/40/X — M40x1,5 — 11/4" — GL min. 15 — Clamping range mm: 18-25 — Wrench B: 43 — Wrench C: 40
40 — UAGTXX/50/X — M40x1,5 — 11/4" — GL min. 15 — Clamping range mm: 22-32 — Wrench B: 50 — Wrench C: 50
50 — UAGTXX/50/X — M50x1,5 — 11/2" — GL min. 15 — Clamping range mm: 22-32 — Wrench B: 55 — Wrench C: 50
50 — UAGTXX/42/X — M50x1,5 — 11/2" — GL min. 15 — Clamping range mm: 30-38 — Wrench B: 60 — Wrench C: 57
63s — UAGTXX/63s/X — M63x1,5 — 2" — GL min. 15 — Clamping range mm: 33-44 — Wrench B: 70 — Wrench C: 64
63 — UAGTXX/63/X — M63x1,5 — 2" — GL min. 15 — Clamping range mm: 45-50 — Wrench B: 70 — Wrench C: 75
72 — UAGTXX/80/X — M72x1,5 — 21/2" — GL min. 20 — Clamping range mm: 50-63 — Wrench B: 90 — Wrench C: 90
75 — UAGTXX/72/X — M75x1,5 — 21/2" — GL min. 20 — Clamping range mm: 45-55 — Wrench B: 85 — Wrench C: 75
75 — UAGTXX/75/X — M75x1,5 — 21/2" — GL min. 20 — Clamping range mm: 50-63 — Wrench B: 90 — Wrench C: 90
80 — UAGTXX/80/X — M80x2,0 — 3" — GL min. 20 — Clamping range mm: 50-63 — Wrench B: 90 — Wrench C: 90
Technical data (exe variants) — sample rows
16 — EUAGTXX/16/X — M16x1,5 — 3/8" — GL min. 7 — Clamping range mm: 4-8 — Wrench B: 18 — Wrench C: 17
20 — EUAGTXX/20/X — M20x1,5 — 1/2" — GL min. 8 — Clamping range mm: 6-12 — Wrench B: 22 — Wrench C: 22
25s — EUAGTXX/25s/X — M25x1,5 — 3/4" — GL min. 8 — Clamping range mm: 10-14 — Wrench B: 27 — Wrench C: 24
25 — EUAGTXX/25/X — M25x1,5 — 3/4" — GL min. 8 — Clamping range mm: 13-18 — Wrench B: 30 — Wrench C: 30
32 — EUAGTXX/32/X — M32x1,5 — 1" — GL min. 9 — Clamping range mm: 13-18 — Wrench B: 34 — Wrench C: 30
32 — EUAGTXX/40/X — M32x1,5 — 1" — GL min. 9 — Clamping range mm: 18-25 — Wrench B: 40 — Wrench C: 40
40 — EUAGTXX/40/X — M40x1,5 — 11/4" — GL min. 9 — Clamping range mm: 18-25 — Wrench B: 43 — Wrench C: 40
Additional information
Product family: Ex-proof EMC Type Cable Glands - UAGT Series
Technical characteristics / specifications
- Series / Model: UAGT Series
- Type: Screened EMC Ex gland suitable for armoured cables
- Certificates: IEP 14 ATEX 0217X (ATEX certificate available)
- Materials: MS58 brass (optionally nickel plated), AISI303 / AISI316L stainless steel, Aluminium
- Earthing cone: MS58 brass (optionally nickel plated)
- Locking ring: Stainless steel AISI303 / AISI316L
- Standards compliance: EN 60079-0:2012; EN 60079-7:2007; EN 60079-1:2007; EN 60079-31:2009
- Ingress protection: IP68
- Temperature ratings by seal material: NBR -30 °C to +120 °C; Neoprene -40 °C to +100 °C; Silicone -60 °C to +180 °C; TPE/V -30 °C to +100 °C
- Zones / Gas groups: Suitable for ZONE1, ZONE2, ZONE21, ZONE22; Gas Groups IIA, IIB, IIC
- Cable compatibility: Screened lines and screened cables; wide clamping ranges depending on size (examples: 4-8 mm up to 50-63 mm)
- Available sizes: Multiple sizes from M16 up to large metric threads (examples: M16, M20, M25, M32, M40, M50, M63, M72, M75, M80)
