Fixed rangefinder 202591

Fixed rangefinder - 202591 - OVIO INSTRUMENTS
Fixed rangefinder - 202591 - OVIO INSTRUMENTS
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Format
fixed

Description

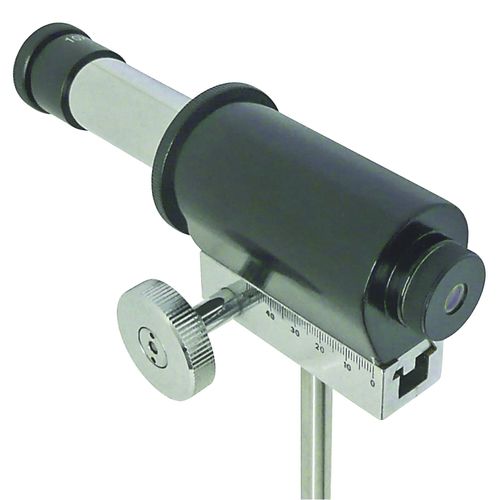

The viewfinder allows the user to precisely locate the plane in which the image is situated. The nominal sighting distance is sufficient to locate the virtual images produced by a 100mm F-lens, for example. - Sight distance: 150 mm - Reticle: cross, one axis at 1/10th mm - Objective: 1x, microscope type - Magnification: 10x - Fine adjustment: rack and pinion - Graduations: every mm from - to +50 mm - Vernier (optional): 1/10th mm - Sharpness adjustment: integrated in the eyepiece - Holding: rod Ø 10 mm - L 130 mm - Storage: plastic case
