Optical interferometer 202760

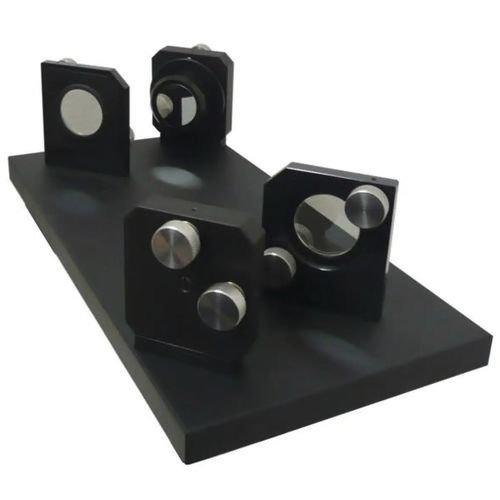

Consisting of two mirrors and two semi-reflective lenses, the Mach-Zehnder configuration is the common form of two-wave interferometers, of which the Michelson interferometer is a variant. Although less sensitive than the Michelson, the Mach-Zehnder has the advantage of not sending a signal back to the source and not causing instability at the source level. - Dimensions: . (HxWxD) 250x200x1400 mm . Weight: 8kg - Material: aluminum and steel - Optical axis: height 22cm - Mirror diameter: 40mm - Blade diameter: 50mm - Mirror flatness: Lambda/20 - Blade flatness: Lambda/10 - Mirror adjustment X-Y: with 2 fine pitch screws - Blade adjustment X-Y: with 2 fine pitch screws - Stability: anti-vibration silentbloc feet
