Optical microscope 202628

educationalbright fieldbenchtop

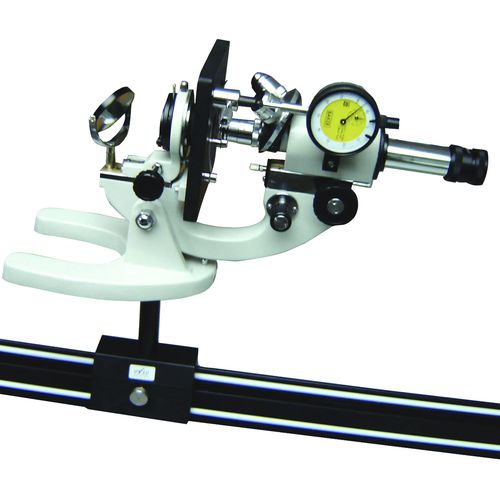

Study microscope. Standard model that has been equipped and transformed in order to study its optical characteristics. All dimensional parameters are measurable and adjustable. The study and understanding of the microscope principle are based on the direct experimentation of a real model. Possibility to complement with a bright field device (ref. 202 756), to be fixed near the microscope eyepiece. Dimensions: H. 300 x W. 200 x D. 400 mm Weight: 4 kg Tilt: up to 90° Mounting: on 10mm diameter rod Eye/objective distance: adjustable by extending/retracting up to +/- 3cm from the original distance Micrometer: mechanical (stage/objective distance) Magnification: measurable with object micrometer at 1/100th (provided) Eyepiece: (x2) standard and micrometric at 1/10th mm Objective: (x3) 4x – 10x – 40x Diaphragm: adjustable Condenser: adjustable Mirror: removable Brightfield: suitable (optional - Ref. 202 756)
