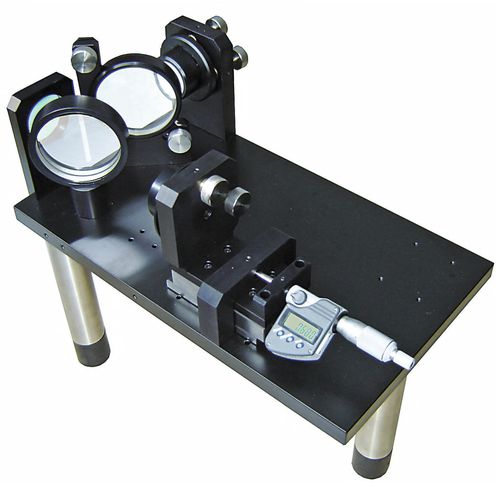

Michelson interferometer 204405

opticaldigital

This interferometer combines stunning brightness with uncompromising technical quality. Equipped with fine electrical adjustments (PZ), a synchronous motor, and numerous accessories, it is the preferred choice for Higher Education. Fine electrical adjustment (option) provides: - A range of adjustment twice as large - An adjustment sensitivity 8 times higher - Unparalleled ease of use - Dimensions: H. 380 x W. 240 x D. 420 mm - Weight: 25 kg - Marble: raw steel - Supports: steel, aluminum - Feet: Ø 40 mm stainless steel - Stability: silent block - Optical axis: height 31 cm - Mirrors: Ø 40 mm - Flatness: lambda/20 - Treatment: anti-reflective - Separator: Ø 80 mm - Compensator: Ø 80 mm - Fixed mirror adjustment: centered adjustment by micro-torsion X-Y with precision screws - Fine electric X and Y adjustment - Mobile mirror adjustment: centered X-Y adjustment with precision screws - Compensator adjustment: adjustable X-Y with precision screws - Vernier: analog and digital, precision to the micron - Translation: by microbead plate, magnetic recall - Displacement: 25 mm range, adjustable optical contact - Protection: multi-layer anti-heat IR filter - Motorization (optional): motorizable with synchronous motor 202 610 - Protection: delivered in a rigid storage case and with a transparent plastic cover - Accessories fixation: mechanical retention by return spring
