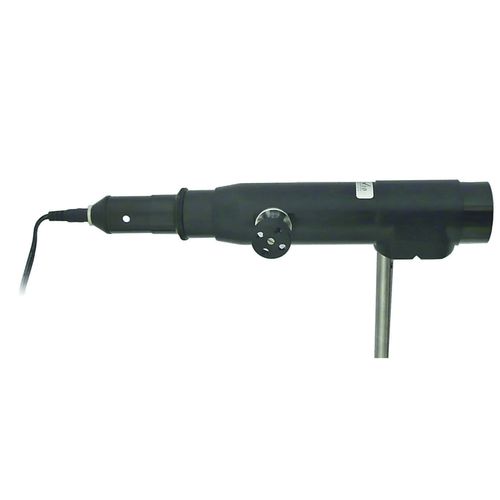

Collimator 20274 series

They are offered to you with different power sources and different adjustment modes. The collimators are designed to place a luminous object at infinity. Common Features: - Focal length: 175 mm - Lens type: Achromatic anti-reflective - Objective diameter: 38 mm - Mount: Lacquered aluminum - Holding: Ø 10 mm rod - L 130 mm - Storage: Plastic case Targets The simplest target is the crosshair. For better distinction between the reticle of the aiming system and the reticle of the collimator, or simply to allow magnification measurements, the target object is ideal. Lighting The collimator illumination can be done by an external source or be integrated. The illuminations are compact thanks to their LED technology. - Type: White LED - Power supply: 6V DC (provided) Adjustments Collimators can be preset to infinity or adjustable by the user. The rack and pinion adjustment system is more precise than simple draw tube.
