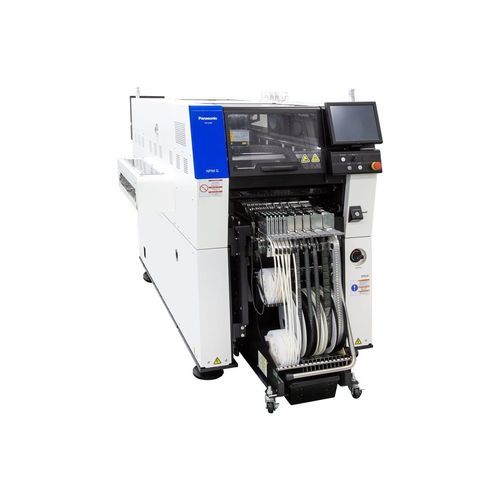

Single- or double-sided PCB pick-and-place machine NPM-GH

SMT

With predictive and targeted maintenance options to maximize uptime, the NPM-GH is the first step to a truly autonomous factory. The first pick-and-place machine in the new “G-Series,” The NPM-GH maximizes output using three newly designed heads. In addition, shorter spindle strokes reduce pick and place times and reduce vibrations for higher output and accuracy with minimal human interface on the factory floor. Key Features •Large 12.1 in display monitor •Compatible with existing assets •New 3,8 & 16 head lightweight nozzles •Prédictive & targeted maintenance options PCB Dimensions (mm) * Single-lane mode: L 50 mm × W 50 mm to L 510 mm × W 590 mm [*1] Dual-lane mode: L 50 mm × W 50 mm to L 510 mm × W 300 mm [*1] PCB Exchange Time 2.3 s ( L 350 mm or less) 5.0 s ( L 350 mm or over to L 510 mm or less) May differ depending on PCB specifications. Electric Source 3-phase AC 200 , 220 , 380 , 400 , 420 , 480 V 2.1 kVA Pneumatic Source * Min.0.5 MPa ～ Max. 0.8 MPa 200 L / min (A.N.R.)[*2] Dimensions (mm) * W 975 mm × D 2,473 mm × H 1,444 mm [*3][*4] Mass * 2,330 kg[*3]
