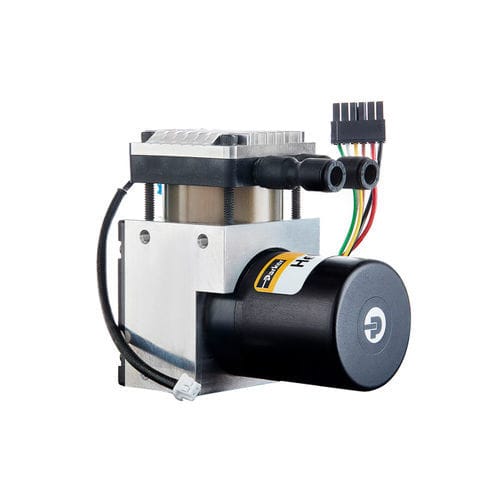

Oscillating piston pump Helix

for gasairwith brushless DC motor

Short description
Helix miniature rocking-piston single-head pump for gas and air handling. Delivers up to 5 L/min free flow and supports pressures up to 100 PSIg (6.9 bar). Designed for pneumatic actuation and microfluidic systems.

Overview
The Helix miniature piston pump uses a rocking-piston mechanism in a compact single-head design. It integrates a brushless DC motor for reliable operation, low-noise performance (~45 dBA) and a lightweight PPS body suitable for space-constrained precision fluidics applications.

Key features

• Technology: Rocking piston
• Fluid type: Air, Gas
• Configuration: Single-head
• Flow rate: 5 L/min (free flow)
• Pressure capability: up to 100 PSIg (6.9 bar) peak; operating 90 psi (6.2 bar)
• Motor: Brushless DC
• Low noise: ~45 dBA
• Materials: Body PPS; wetted parts Stainless Steel 316, Al, FKM, EPDM, PTFE, PPS
• Compact footprint and low weight (576 g)

Typical applications

• Air-over-liquid control
• Pneumatic actuation
• Microfluidic chips and analysers
• Point-of-care and portable diagnostic devices

Technical specifications

• Flow Rate: 5 L/min
• Operating Pressure: 90 psi (6.2 bar)
• Maximum Continuous Pressure: 60 psi (4.1 bar)
• Peak pressure (as indicated): up to 100 PSIg (6.9 bar)
• Vacuum rating: 0 psi (0 mm-Hg)
• Maximum continuous vacuum: 0 psi (0 mm-Hg)
• Displacement: 0.5 in³
• Weight: 576 g
• Dimensions (L x W x H): 3.44 in (87.3 mm) x 1.93 in (49 mm) x 3.32 in (84.3 mm)
• Motor Type: Brushless DC
• Body material: PPS
• Wetted materials: Stainless Steel 316, Al, FKM, EPDM, PTFE, PPS
• Noise level: 45 dBA
• Operating temperature: 5 to 45 °C
• Operational life: application dependent
