Hydraulic fitting 6100

threadedquicknitrile

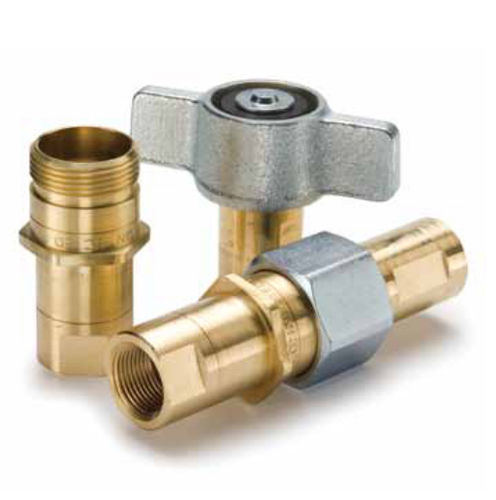

6100 Series Couplers (hydraulic) 3000 psi connect with 6100 Series Nipples. Parker's 6100 Series is a thread to connect, low spill coupling that can be connected under pressure. Coupler and nipple bodies are corrosion resistant brass. Couplers are available with a steel hex nut or heavy duty wing nut sleeve. A connection indicator groove on the nipple body visually shows when the connection is complete and valves are fully open. Couplers and nipples are available in a range of sizes. Couplings sets consisting of a coupler, nipple, and mounting flanges are also available. Technical Characteristics: • Materials: Brass with steel sleeve • Port Ends: Female NPTF • Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene Markets: • Oil and gas • Construction • Testing Features/Benefits: • Couplers are available with steel hex or heavy duty wing nut sleeve • Low spill flush valves • Bonded valve seal is durable under full pressure connect and disconnect • Connection indicator groove on the nipple body visually indicates when the connection is complete • Optional flange for secure bulkhead or panel mounting Applications: • Submersible pumps • Oil field equipment • Dump trailers • Engine test stands • Bulk liquid transfer
