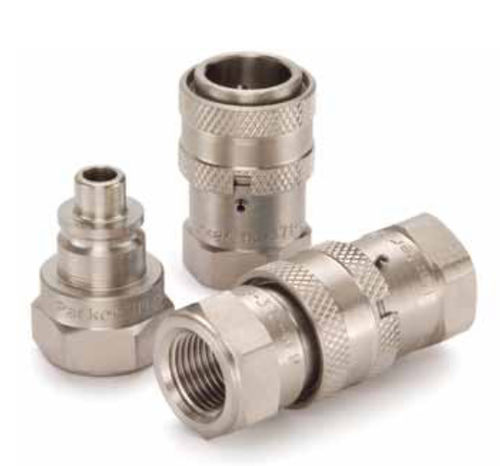

Steel nipple HO series

threadedhexagonalfemale

Parker's high pressure and high flow quick couplers are ideal for use with high pressure hydraulic applications where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop. Full Product Description HO Series Couplers (hydraulic) up to 15,000 psi connect with HO Series Nipples. Parker's HO Series are high pressure, steel, high flow quick couplings with manual sleeves. Couplers and nipples are unvalved, resulting in straight through, unrestricted flow. Electroless nickel plating provides corrosion resistance and sleeve lock guards against accidental disconnection. Technical Characteristics: • Sizes: 1/4”, 3/8", 1/2” • Material: Steel with electroless nickel plating • Port Ends: Female NPTF • Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene Markets: • Pulp and paper • Oil and gas • Testing Features/Benefits: • Sleeve lock guards against accidental disconnection • Straight through, unvalved design provides full flow with minimal pressure drop • Electroless nickel plating adds corrosion resistance Applications: • Paper and pulp processing • Refinery systems • Testing systems
